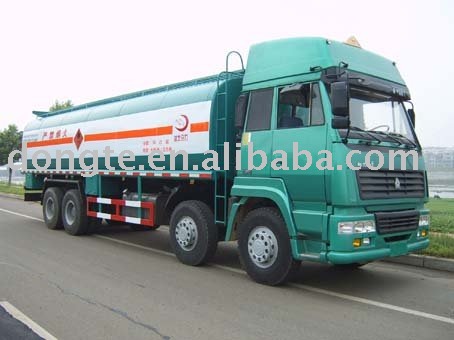

ZZ1316M4666V Chemical Liquid Tanker
Our factory is the biggest manufacturer of chemical liquid tank truck in the volume of...... - details see: https://www.machineto.com/zz1316m4666v-chemical-liquid-tanker-10284081
| Place of Origin:HUB,Hebei, China China (Mainland) | Brand Name:DTA,dta | Model Number:dta |
| Vehicle: | Sinotruk 1316 Chemical Liquid Tanker |
| chassis: | ZZ1316M4666V |
| Dimension(mm): | 11990*2490*3750 |
| gross mass: | 31000 |
| Load capacity(kg): | 16000 |
| Kerb weight(kg): | 14870 |
| Approach angle/departure angle(degree): | 15/20 |
| Front overhang/rear overhang(mm): | 1560/2390 |
| Maximum speed(km/h): | 90 |
| Engine type: | WD615.62, WD615.87 |
| Delivery capacity(ml): | 9726, 9726 |
| Power(kw): | 196, 213 |
| Fuel type: | diesel fuel |
| Change direction: | steering wheel |
| Number of axles: | 4 |
| Wheelbase(mm): | 1800+4600+1350 |
| Number of spring(front/rear): | left 14 right 13/12 |
| Number of tyre: | 12 |
| Tyre size: | 11.00-20,11.00R20,12.00-20,12.00R20 |
| Capacity(m3): | 26.6 |
| Packaging Detail:naked or in container |
| Delivery Detail:25 working days |
