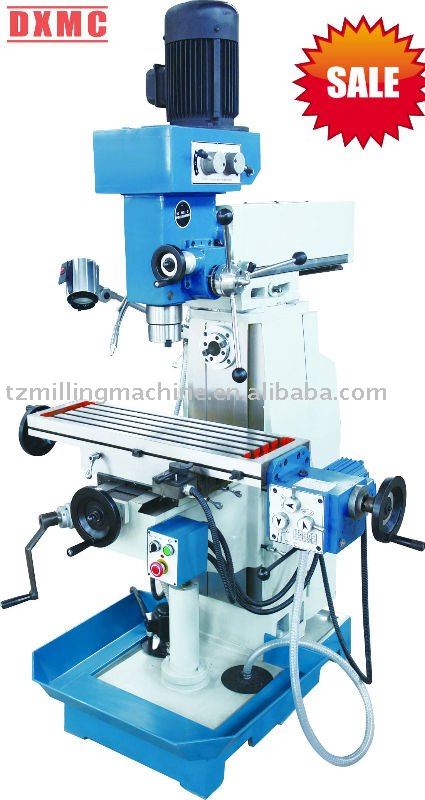

ZX7550CW CNC Drilling and tapping Machine

1,economic-type drilling and milling machine, 2,light and flexible,, 3,used for mechanical maintenance, 4,according to CE - details see: https://www.machineto.com/zx7550cw-cnc-drilling-and-tapping-machine-10131129
Condition:NewPlace of Origin:Shandong China (Mainland)Brand Name:DXMCModel Number:ZX7550CW
Type:Vertical and horizontal milling machineCNC or Not:NormalColor:Blue and WhiteProcessing:Milling Machine
Usage:GeneralControlling Mode:Profile Modeling MachinePrecision:High PrecisionProcessing Types:Metal
Automatic Grade:SemiautomaticWorkpiece and Weight:Heavy-duty Machine Tool
ZX7550CW CNC Drilling and tapping Machine
contact supplier for ZX7550CW CNC Drilling and tapping Machine


ZX7550CW Drilling and Milling Machine

It is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing and components manufacturing , ACCORDING TO CE standard

SpsecificationsZX7550CW
Max. drilling dia (mm)50
Max. end milling width (mm)100
Max. vertical milling dia (mm)25
Max. boring dia (mm)120
Max. tappinig dia (mm)M16
Distance from spindle to table surface (mm)90-490
Spindle speed range r.p.m(v)115-1750

(h)60-1350

Spindle travel (mm)120
Table size (mm)1000x240
Table travel (mm)400x230
Overalldimensions (mm)1280x1100x2080
Main motor power (kw)0.85/1.5
N.W/G.W (kg)850/1000

ZX7550CW CNC Drilling and tapping Machine
Packaging Detail:Wooden Case
Delivery Detail:within 35days after receipt the depoist
