Professional Manufacturer of Ore Ball Mill

1.Brief Description of Ball Mill:

Ore Ball mill is the key equipment for grinding after the crushing process. The Ball Mill is used to grind many kinds of ore and other materials, or to select the mine.

China ball mill is widely used in building material, chemical industry, etc.

There are two ways of grinding: the dry process and the wet process. Ball mill can be divided into tabular(grate/grid) mill and flowing mill according to different forms of discharging material.

2.Application of Ball Mill:

Ball Mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

3.Working Principle of Ball Mill:

Ore Ball mill is a horizontal rotating device transmitted by the outer gear. The raw materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

4.Technical Parameters of Ball Mill:

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor power(kw)	Weight(t)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	34
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	36
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	42
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	400	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	430	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137

5.Structural characteristics of LDHM Ball Mill:

The mill feed from yhe department of discharging department, rotary department, transmission division(reducer, small transmission gear,motor,electric control) and other major components. Hollow shaft with steel parts, lining removable, slewing gear hobbing using casting processing, the body inlaid cylinder liner wear, has good abrasion onresistance.The machine running smoothly, work reliably.

Note:The above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.

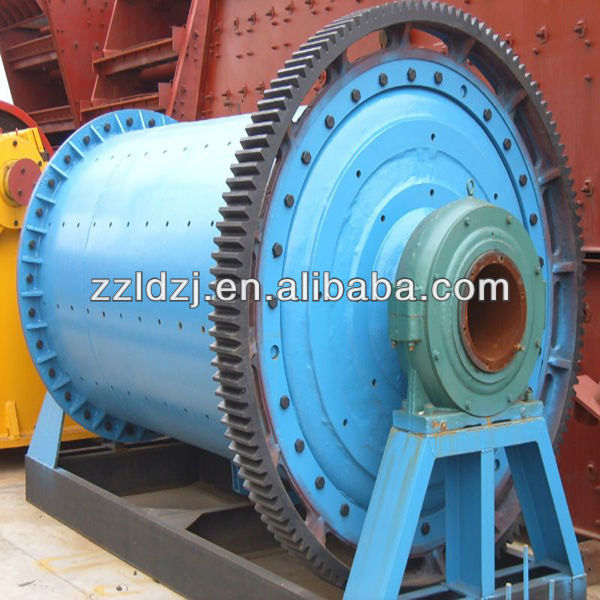

6.LDHM Ball Mill Photos'SHOW:
