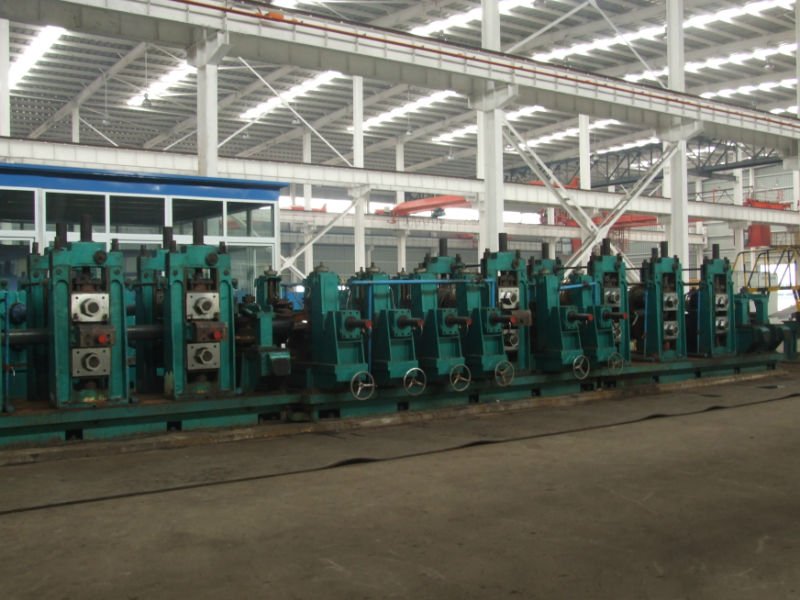

ZF114 HF Pipe Making machine
1. material: low carbon steel and low alloy steel., 2. function: produce round pipes and square & rectangular pipes. - details see: https://www.machineto.com/zf114-hf-pipe-making-machine-10081428
Condition:New | Type:Pipe Production Line | Pipe Material:Carbon Steel | Application:Energy Supply Pipe |
Place of Origin:Hebei China (Mainland) | Brand Name:BZWX | Model Number:ERW114 | Rated Capacity:600 KW |
Usage:Making ERW pipes of 114 mm | Dimensions:76-114 mm | | |
- Standard: YB189-64
- Material: Low carbon steel and low allow steel: Q195-Q345, and so on.
- Strips width: 240 — 360 mm
- Strips thickness: 2.0 — 4.5 mm
- Strips coil inner diameter: Φ500 — Φ550 mm;
- Strips coil outer diameter: Φ1000 — Φ1400 mm;
- Coil weight: ≤ 8 tons
- Round pipe diameter range: Φ76 — Φ114 mm, wall thickness: 2.0 — 4.5 mm
- Square tube range: 60 × 60 mm — 90 × 90 mm, wall thickness: 2.0 — 3.5 mm
- Rectangular tube range: 40 × 80 mm — 60 × 120 mm, wall thickness: 2.0 — 3.5 mm
- Tube and pipe length: 6 — 12 m
- Length tolerance: ±3 mm
- Production Speed:0-70 m/min
- Production process:Coil preparation→Uncoiler→End straightening→ Shear and cross welding→Material Accumulator→Forming and sizing machine→Flying saw→Output runway→Six rollers straightening→Runway→Material reverse→Rack→Head flatting→Runway→Materialreverse→Rack→Automatic packing→Storage.
- Equipment supply list
Item No. | Quantity | Equipment Description | Remark |
1 | 1 | Uncoiler | |
2 | 1 | Shear and cross welder | |
3 | 1 | Two rollers delivery machine | |
4 | 1 | Material accumulator | |
5 | 1 | Forming and sizing machine | |
6 | 1 | Flying saw | |
7 | 1 | Straightening machine | |
8 | 1 | End-facing and bevelling machine | |
9 | 1 | Runway, material reverse and rack | |
10 | 1 | Auxiliary electric control and operating table | |
11 | 1 | Anchor bolts and buried parts | |
12 | 1 | Hydraulic automatic packer | |
| | | |
| | | |
| | | |
Packaging Detail:Wooden cases or as required. |
Delivery Detail:120 Days |
