Zenith grinder mill, stone mill grinder
Condition:New | Type:Raymond Mill,Mill | Motor Type:AC Motor | Power(W):50KW |
Capacity(t/h):350-6000kg/h | Place of Origin:Shanghai China (Mainland) | Brand Name:zenith | Model Number:XZM |
Certification:CE | Warranty:One Year | After-sales Service Provided:Engineers available to service machinery overseas | Application:Ore |
Guarantee/Warranty:Qualit/ approvals | Test&Installation:engineer assigned | spare parts supply:for whole year | After-sale service:for whole using life |
![Zenith grinder mill, stone mill grinder](https://www.machineto.com/img/showcase/zenith-grinder-mill-stone-mill-grinder-10314193.jpg)

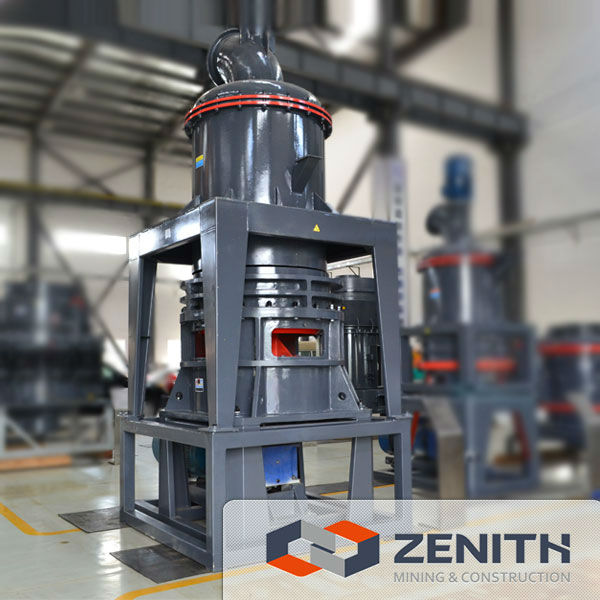

Zenith grinder mill, stone mill grinder
Zenith XZM Ultrafinestone mill grinder is widely used in making fine powder or micro powder, a new kind of machine for producing ultrafine powder. stone mill grinder is mainly used for grinding the material with middle and low hardness, moisture below 6%, and the material should be non-explosive and non-flammable, such as: calcite, chalk, limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite, iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassium ore pumice, etc. The size of the finished product can be adjusted between 325-2500 mesh.
stone mill grinder Features:
1. Reliable
2. High capacity and low cost
3. Easy adjustment of product fineness
4. Clean, environmental protection
stone mill grinder Technical Data:
Model | Number of roller (piece) | Ring diameter (mm) | Number of ring (piece) | Max. inlet size (mm) | Final size (mesh) | Capacity (kg/h) | Main equipment rotate speed (r/min) |
XZM221 | 21 | Φ800 | 3 | ≤10 | 325-2500 | 600-5500 | 235 |
XZM224 | 24 | Φ900 | 3 | ≤20 | 325-2500 | 700-5500 | 235 |
XZM236 | 36 | Φ1000 | 4 | ≤20 | 325-2500 | 700-7500 | 235 |
Basic data | Item | Unit | specification | ||
XZM221 | XZM224 | XZM236 | |||
Motor of main machine | Model | - | Y250M-4 | Y280S-8 | Y2-315L-6 |
Power | kw | 55 | 37×2 | 110 | |
Speed-adjustable motor | Model | - | Y180M-4 | Y180L-4 | Y2VP200L-4 |
Power | kw | 18.5 | 22 | 30 | |
Motor of elevator | Model | - | Y100L-4 | Y100L-4 | Y100L-4 |
Power | kw | 3 | 3 | 3 | |
Motor of blower | Model | - | Y225M-2 | Y225M-2 | Y280S-2 |
Power | kw | 45 | 55 | 90 | |
Hammer crusher | Model | - | PC300*400 | PC300*400 | PC400*600 |
Power | kw | 11 | 11 | 18.5 | |
Electromagnetic Vibrating feeder | Model | - | GZ1F | GZ1F | GZIF |
Power | kw | 0.06 | 0.06 | 0.06 | |
Discharge valve | Model | - | ZJD-200 | ZJD-200 | ZJD-200 |
Power | kw | 0.75 | 0.75 | 0.75 | |
Note: If there is any change of above specification, it is all according to the booklet with machine. |
ABOUT US
Shanghai Zenith Mining and Construction CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of Zenith is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all Zenith machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our Zenith, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
SUPPORT
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
The head office of Zenith is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all Zenith machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our Zenith, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
![Zenith grinder mill, stone mill grinder XZM Zenith grinder mill, stone mill grinder](https://www.machineto.com/img/lg/zenith-grinder-mill-stone-mill-grinder-10314193.jpg)
Packaging Detail:Standard packaging |
Delivery Detail:30 days |
