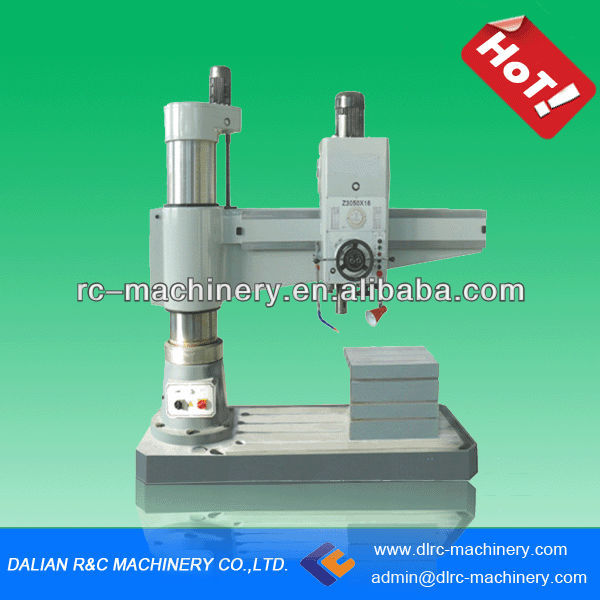

Z3050 radial drilling machine

1.Company Introduction:

2.Our Work Flow:

3.Description:

The radical drilling machine is suitable for high-speed steel, hard alloy and ceramic cutting tool, machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of ferrous metals, nonferrous metals and some non-metallic parts. It can meet different quantity production requirements with high efficiency, stable and reliable precision.

4.Features:

Optimum design conforming to international standard.

Key precisely machined parts precision machining

Great Flexible radical drilling machine with reliable and perfect feature

This radical drilling machine has High precision; high strength.

This radical drilling machine has Economical cutting and long life.

Drilling, counterboring, reaming, boring, spotting,tapping.

5.Machine Main Structure:

The radical drilling machine's heat treatment made by first-class equipment, ensuring durability.

The radical drilling machine's main parts and key part are made by high strength cast and special steel material.

The radical drilling machining is made by means of specialized equipment, to ensure basic parts with superior quality.

Clamping for assemblies and speed-change of spindle is achieved by hydraulic power, and is sensitive and reliable.

16 steps of spindle speed and feed brings about economic and high-efficiency cutting.

Mechanical and electrical controls are centralized on the headstock, with easy and rapid operation

Mew paining technology and improved outward appearance reflects the specialty of machines

6.Machine specifications:

Item		Unit	Z3050×16	Z3063×20	Z3080×25	Z30100×31	z30125×40	Z30132×40
Max. drilling diameter		mm	50	63	80	100	125	132
Distance from spindle center to column surface	Max.	mm	1600	2000	2530	3150	4000	4000
	Min.	mm	350	450	530	570	600	600
Distance from spindle nose to base surface	Max.	mm	1270	1650	2050	2500	2500	2500
	Min.	mm	370	450	600	750	750	750
Spindle travel		mm	315	400	450	500	560	560
Taper of spindle bore (Morse)		No	5#	5#	6#	6#	Metric80	Metric80
Spindle speed		r/min	25-2000	20-1600	16-1250	8-1000	6.3-800	6.3-800
Spindle speed series			16	16	16	16	16	16
Spindle feed rate series		mm/r	0.04-3.2	0.04-3.2	0.04-3.2	0.06-3.2	0.06-3.2	0.06-3.2
Table size		mm	500×650	630×800	800×1000	800×1250	800×1250	800×1250
Headstock horizontal distance		mm	1250	1550	2000	2580	3400	3400
Main power		kw	4	5.5	7.5	15	18.5	18.5
Weight	Net	Kg	3500	7300	10500	20000	28500	28500
	Gross	Kg	4100	10600	14500	24000	31500	31500
Dimensions	L	mm	2500	3080	3730	4650	5817	5817
	W	Mm	1070	1250	1400	1630	2000	2000
	H	mm	2880	3245	3835	4425	5120	5120

7.Our Radical Drilling Machine Photo:

8. Our Radical Drilling Machine you may interest in:

9. Our Clients used Our Radical Drilling Machine:

10.Our Factory For Radical Drilling Machine:

11. With customers:

12.After-sale service:

The full machine warranty is 1 year. The seller will offer maintenance free service in the warranty period (except the damage caused by the user’s own reasons).

13.Main export markets:

Albania, Saudi Arabia, Indonesia, Iran, Brazil, Ukraine, Paraguay, Egypt
