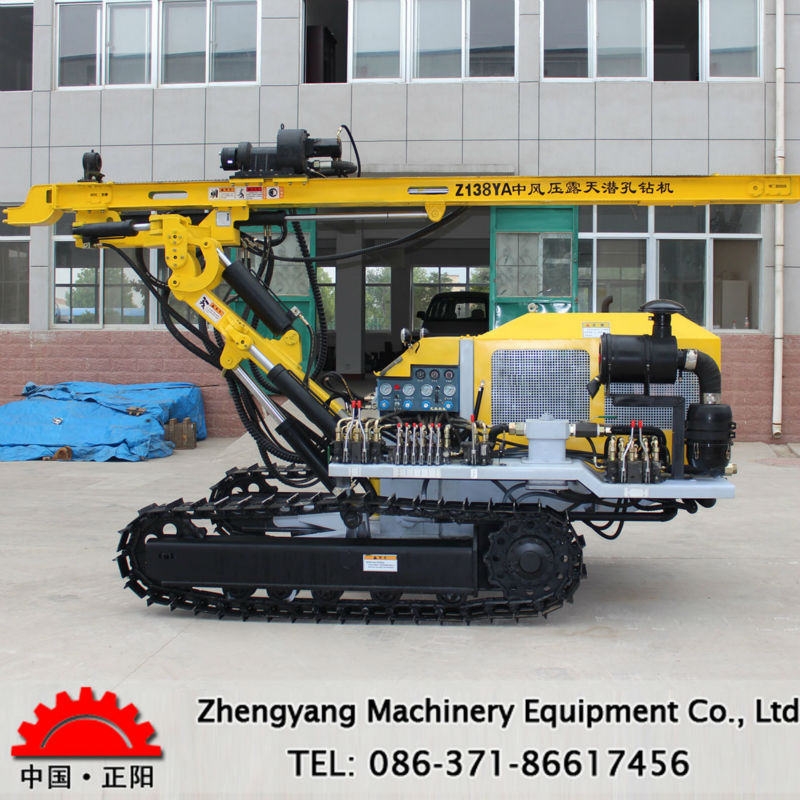

Z138Y Water Well Drilling Machine For Sale

Z138Y Water Well Drilling Machine For Sale, 1,drill depth:level 40m,down 80m, 2,drill diameter:90----130((max:203) - details see: https://www.machineto.com/z138y-water-well-drilling-machine-for-sale-10125360
Condition:NewCNC or Not:CNCPlace of Origin:Henan China (Mainland)Brand Name:ZY
Model Number:Z138YDrilling diameter (mm):90----130((max:203)Drilling depth (m):level 40m down 80mMaximum lift force (N):24900
Skid pitch (°):up and down total 95Swinging angle of skid (°):Left 38, right 31Boom Pitch (°):up and down total 70Boom swing angle (°):Left 41, right 33
Grade ability (°):30Chassis ground clearance (mm):260Rotary torque (N.m):2000
Z138Y Water Well Drilling Machine For Sale
contact supplier for Z138Y Water Well Drilling Machine For Sale


Z138Y Water Well Drilling Machine For Sale

Wind pressure (Mpa)0.7----1.6
Air consumption (m³/min)10----15
Drilling diameter (mm)90----130((max:203)
Drilling depth (m)level 40m,down 80m
Once promotion distance (mm)3000
Skid compensation (mm)900
Maximum lift force (N)24900
Skid pitch (°)up and down total 95
Swinging angle of skid (°)Left 38, right 31
Boom Pitch (°)up and down total 70
Boom swing angle (°)Left 41, right 33
Grade ability (°)30
Chassis ground clearance (mm)260
Travelling speed (km/h)2
Back to the transit speed (r/min)0----80
Rotary torque (N.m)2000
Host Power (Kw)45
For rock (f)6----20
Impact frequency (r/min)950---1500
Total Weight (kg)3800
Dimension (L * W * H)5200*2030*2300

Z138Y Water Well Drilling Machine For Sale

Z138Y Water Well Drilling Machine For Sale
Packaging Detail:15days
Delivery Detail:as custmoer's requirement
