1.bobbin winding machine for braiding machine and lace knitting machine, 2.can wind kinds of bobbin, 3.Automatic - details see: https://www.machineto.com/yts-s-101-1-automatic-bobbin-winding-machine-10279243

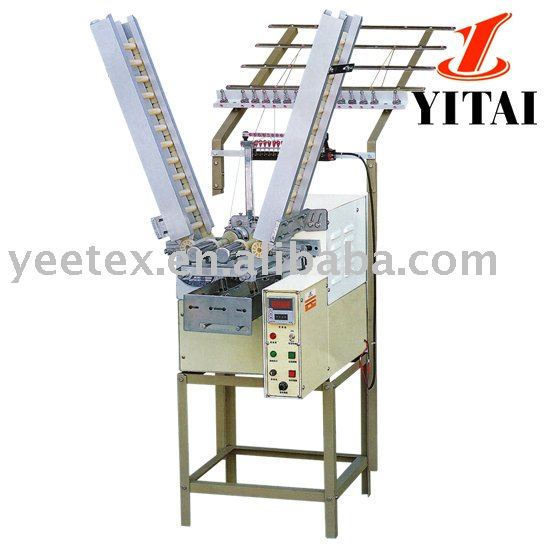

1.Product name:bobbin winding machine

2.Bobbin winding machine function:
It is applicable to wind yarns, for brading machine, lace knitting machin and so on.

3.Bobbin winding machine features:
1),Strong stability,can avoid the damage while unstable voltage.

2),High speed,winding area is away from contamination to enhance productivity.

3),Have many yarn automatic stop equipments,testing freely,and shall automatically stop when yarn parking.

4),Adopt electronic counter,to control winding floors,for changing yarn easily.

5),The motor works stablly to rank yarn,so the yarn shall be out easily,and will reduce the wastage of yarn.

4.Bobbin winding machine specification:

Model	101-1	101-2
Bobbin diameter	80 mm	130 mm
Bobbin length	50-175 mm	100-210 mm
Motor	DC 300W	DC 300W
Size of appearance	1500x750x1500 mm	1500x750x1500 mm

5.Bobbin winding machine parts:


6.Bobbin winded by bobbin winding machine:
