YGM Stone Grinder, Easy adjustment, 10-20% higher capacity, Maximum 1000meshes fineness, Multi-seals,no dust,noise pollution - details see: https://www.machineto.com/ygm-series-high-pressure-ultrafine-stone-powder-grinder-10313913

YGM high pressure ultrafine stone grinder mill (high pressure suspension mill), very popular in South Asia,European and Africa Markets

1. Application of High Pressure Ultrafine powder grinder:
High Pressure Ultrafinegrinderis mainly used to grind ultrafine the non- explosive materials of Mohs Hardness≤ 6 and humidity≤ 8%, such as kaolin, limestone, calcite, marble, barite, gypsum, iron oxide green, aluminum hydroxide, pigment, clay, coal and charcoal in the trades of mining, metallurgical industrial, chemical engineering and building material for high fineness powder generation and processing.

2. YGM powder grinder features:

1). Compared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
2). Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
3). High Pressure Suspension Mill meets the requirement of national dust-dump standard.
4). The separator can be adjusted very easily.
5). The multi-class seals are adopted to keep the grinding equipment tightly closed.

3. Technical Data of YGM series stone powder grinder:

Model	Grinding roller number	Grinding roller size(mm)	Ring DiameterxHeight(mm)	Max. feed size(mm)	Finished size(mm)	Capacity (t/h)	Sped of Main mill (r/min)	Weight without motor(ton)	Mainframe power (kw)	Overall dimension (mm)
YGM65	3	210x150	650x150	<15	0.613-0.033	0.4-1.8	160	3.6	15	4100x3300x4500
YGM75	3	260x150	780x150	<15	0.613-0.033	1-3	160	4.8	18.5	4300x3500x5100
YGM85	3	270x150	830x140	<20	0.613-0.033	1.2-4.6	150	8	22	5300x4100x5200
YGM85B	3	270x150	830X150	<20	0.613-0.033	1.2-4.6	167	8.5	22	5600X3400X4900
YGM95	4	310x170	950x170	<25	0.613-0.033	2.1-5.6	130	14	37	7100x5900x7900
YGM130	5	410x210	1280x210	<30	0.613-0.033	3-9.5	103	24	75	7850x8000x9700

Other more grinding mills for your enquiry as below:

--cement grinding mill

--wet grinding mill

--ceramic grinding mill

--small grinding mill for sale

--mini grinding mill

--lead oxide grinding mill

--gold grinding mill

--energy saving grinding mill

--iron ore grinding mill

--dry grinding mill

--China grinding mill

--industrial grinding mill

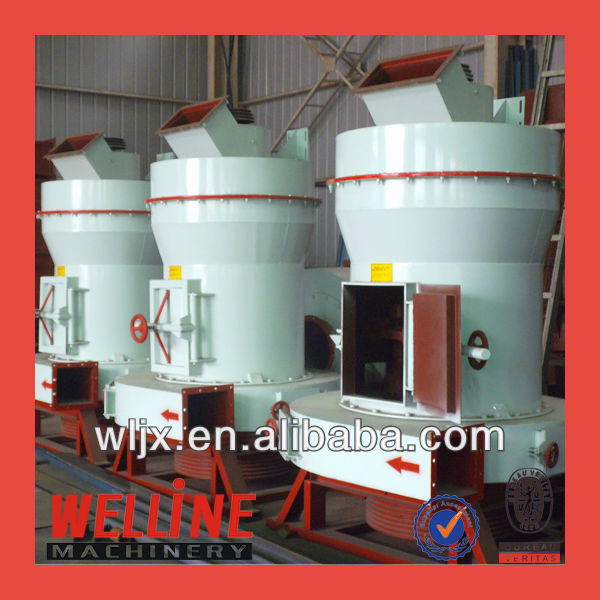

5. YGM powder grinder working sites:

With 12 years history, Welline is one of the largest professional suppliers of complete stone crushing plant,sand making machines as well as industrial powder grinders in China.

In order to recommend suitable design for you, please kindly tell me:
1. What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
Impact crusher is suitable as secondary crusher for soft stone, while cone crusher is suitable as secondary crusher for hard stone.
2. What is the maximum feed size of your raw material?
3. What are output sizes you want?
Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.
4. What is capacity you want? How many ton per hour?
