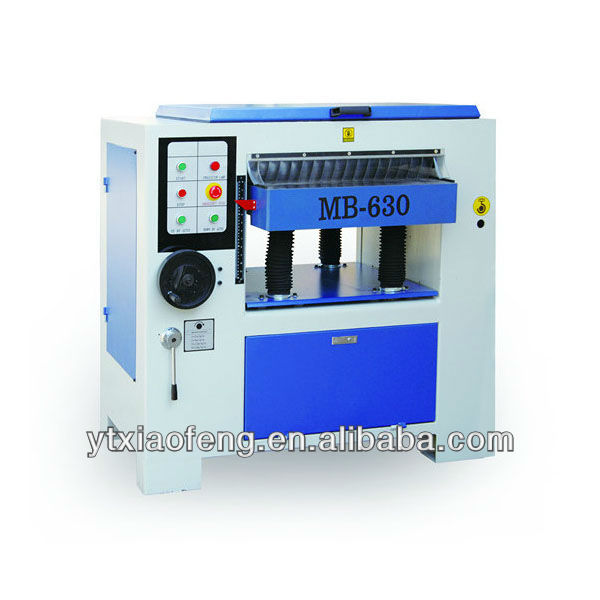

1. Body with heavy duty steel, 2. High speed edge feeding system, 3.Segmented edge feeding sysem - details see: https://www.machineto.com/woodworking-thicknesser-planer-mb630-10343784

Model	MB430	MB530	MB630	MB830
Max. planning width	430mm	530mm	630mm	830mm
Max. planning thickness	300mm	300mm	300mm	300mm
Min. planning depth	8mm	8mm	8mm	8mm
Max. planning depth	5mm	5mm	5mm	5mm
Spindle speed	5600r/min	5200r/min	4900r/min	4500r/min
Motor power	4kw/380v	5.5kw/380v	7.5kw/380v	7.5kw/380v
Lift motor power	0.75kw	0.75kw	0.75kw	0.75kw
Feeding speed	5,8,12,18/min	5,8,12,18/min	5,8,12,18/min	5,8,12,18/min
Overall dimensions	1000x1015x1150mm	1000x1115x1150mm	1000x1215x1210mm	1000x1415x1210mm

1. The body is with heavy-duty steel and with special heat treatment process, better stability and lover noise.
2. Stable high speed edge feeding system, 18m/min. And with four frequency conversion box, convenient for the users to adjust the feed rate depending on the workpiece quality requirement, improve production efficiency.
3. The work table is with special treatment process, better durability and no deformation.
4. Segmented edge feeding system and segmented wheel with helical structure, ensures edge feeding more smooth and strong.
5. Heavy cutting spindle equipped with SKF high-speed bearings, more smooth cutting and lower noise.
6. All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation.
7. The strict and elaborate assembly process to endure each equipment requirement gets to its standard indicator.
