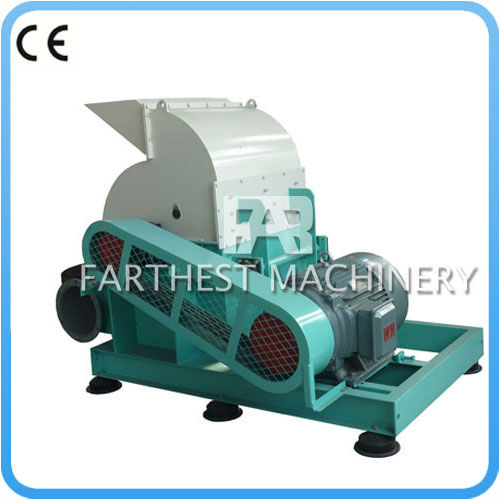

Wood Shaving Grinding Equipment

2012 Wood Shaving Grinding Equipment, 1.Low vibration, 2.high quality and low cost, 3.long working life - details see: https://www.machineto.com/wood-shaving-grinding-equipment-10355794

Condition:New	Place of Origin:Jiangsu China (Mainland)	Brand Name:FAR	Model Number:MFSP Series
Voltage:380V	Power(W):different motors available	Certification:CE	Warranty:one year
After-sales Service Provided:Engineers available to service machinery overseas	brand:FAR	Country:Jiangsu.China(mainland)	delivery time:less than one moth
output:10-28tph	standard:ISO9001	bearing:NSK	material:stainless steel
motor:Siemens(China)

Wood Shaving Grinding Equipment

Features

1,It is used for grinding of small wood blocks, chips before pelleting;

2,Multi grinding chamber to increase efficiency by 15%;

3,Multi grinding chamber to prolong service life of screen and beater;

4,Modified rotor to increase stability and avoid overheating from the bearing;

5,Modified screen locking device to make assembling &disassembling easily;

6,Unique structure design of door to absorb shake and reduce noise;

7,Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

8,Depress barycenter of rotor to make more balanced and coarse and fine grinding can be completed easily.

Main Technical Parameter

Parameters Model	Dia Of Rotor (mm)	Width Of Grinding Chamber(mm)	Speed Of Rotor(r/min)	Power (kw)	Output (t/h)
MFSP668-1	660	500	2970	55/75	10-15
MFSP668-2	660	600	2970	75/90	13-18
MFSP668-3	660	750	2970	90/110	16-22
MFSP668-4	660	1000	2970	110/132	19-28

Details

About Our Factory

Questions

1. Q: Are you a trading company or a manufacturer?

A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?

A: You can fly to Nanjing Airport, where is just about 40-50mins way from our factory.

3. Q: How long is your guarantee time?

A: One Year (Calculated from the equipment arrives the customer’s side.). Certainly after one year, we are available to save the problems you meet.

4.Q: Will you send engineers to install the plant?

A: yes, but extra installation feed should be paid. You can also ask your local workers to install and we just send one engineer to guide.

Certification

Exported Equipment

FAR products have been exported to South Korea, Irag, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.

Exhibition

Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23^rd- 25^thSep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18^th-20^thMay, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.

About US

CHANGZHOU FARTHEST MACHINERY CO., LTDis a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. FAR has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to FAR products.
