Rotary Sawdust Dryer, 1. Equipped with lifter and fan, 2. Low dust, 3. Strong drying strength, 4. Easy operation - details see: https://www.machineto.com/wood-sawdust-rotary-drum-dryer-sawdust-dryer-machine-sawdust-dryer-for-sale-10287848

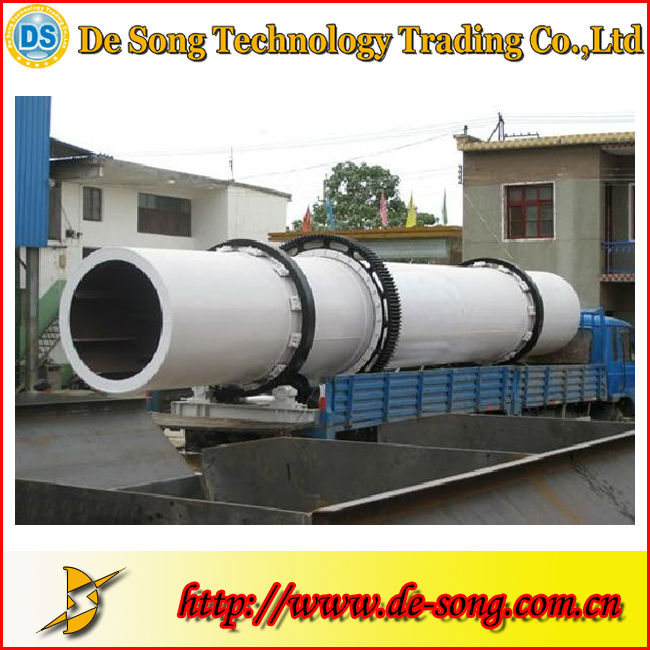

Rotary Sawdust Dryer

The series rotary dryers are used for drying many kinds of materials and finished products, such as the wood chips, wood sawdusts, small wood chips/shavings, crop stalk powders, fertilizer materials or animal manure. The series rotary dryers reduce the water content through the hot air from the stove, make the big moisture materials to decrease to the low moisture, until the materials can be further used.

The sawdust rotary dryers are with blower, cyclone and airlocks as the dust-collecting machines, we also supply stove according to your need, form the complete drying system. Reasonable structure, low energy consumption & high working efficiency. The dryers are applied to the farm processing plant, wood working factory, biomass pellet production plant or fertilizer plant.

Structure of rotary dryer:

In order to increase the material evenly distributed in the rotor parts of the cross section in good contact with the drying medium, in the cylinder body installation raise plates. There are several types of raise plate.

1). Lifting type: For large or easy to bond the material in the tube wall.

2). Four formats type: Suitable for big density, not crisp or not easily scattered materials. The raise plate will be divided into four panes, and were mutually connected fan-shaped workout room, materials and the contact surface of the hot gas than large of the lifting type, and also can increase of the filling material rate and reduce material landing height and reduce dust quantity loss and so on.

3). Cross-shaped or frame-shaped: Applicable to brittle and easy dispersion small pieces of material, make the material can be evenly dispersed in cylinder whole section.

4). Sleeve type: For double entry heat transfer for the double (or half the diameter heating) rotary drum dryer raise plate.

5). Separate format (fan): For very fine particles and the material prone to flying powder. Materials accumulate on grid board when it into, then cylinder rotates, the material is turning and continue contacts with the hot gases. At the same time, the decrease of height landing, reducing the dry material being gas away possibility.

Advantages of rotary dryer:

The dryer has advantages of reasonable structure, high efficiency, low energy consumption.

Application of rotary dryer:

Rotary dryer is used to dry slag, clay, limestone; it is mainly used for cement, chemical, metallurgical, building materials industries.

Working principle of rotary dryer:

The auto-combustion device provides heat resource for our rotary dryer, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.

Technology data:

Model	Cylinder			Engine		Reducer	Outsize (L*W*H) (mm)
	Vacuum (M3)	Speed (r/min)	Slope(%)	Model	Power(KW)	Model
φ0.6×8M	2.2	7-10	3-5	Y132M2-6	4	ZL250-11-25	9000×1550×1600
φ0.8×8M	4.1	5-7	3-5	Y132M2-6	4	ZL250-11-25	9000×1750×1850
φ1×10M	7.85	6.73	3-5	Y132M2-6	5.5	ZL350-11-25	10000×1873×2069
φ1.2×8M	9.1	5.0	3-5	Y132M2-6	6.6	ZL350-11-25	9000×2150×2475
φ1.2×10M	11.31	5.8	3-5	Y160M-6	7.5	ZQ350-11-25	1000×2159×2475
φ1.2×12M	13.31	5.8	3-5	Y160L-6	11	ZQ5000-11-31.5	12000×2159×2475
φ1.5×8M	14.14	4.8	3-5	Y160L-6	11	ZQ650-11-2F1F	8000×2655×2895
φ1.5×10M	17.67	4.8	3-5	Y160L-6	11	ZQ650-11-2F1F	10000×2655×2895
φ1.5×12M	21.2	4.8	3-6	Y180L-6	15	ZQ650-11-31.5	12000×2655×2895
φ1.8×14M	35.1	5	3-5	Y200L1-6	18.5	ZQ650-11-2F/1F	14000×3060×2980
φ1.8×15M	38	2-4	1.5-3	Y180L-6	22	ZQ650-11-31.5	17000×3000×2800
φ1.8×18M	45.8	5	3-5	Y200L2-6	22	ZQ650-11-2F/1F	18000×3060×2980
