wood machinery/hot press for bamboo boards/wood machine/plywood machine/plywood machinery

wood machinery/wood machine, wood machine/plywood machine/plywood machinery, hot press machinery for bamboo boards - details see: https://www.machineto.com/wood-machinery-hot-press-for-bamboo-boards-wood-machine-plywood-machine-plywood-machinery-10346158
Condition:NewType:Hot PressApplication:making plywoodPlace of Origin:Shandong China (Mainland)
Brand Name:HUA TEAfter-sales Service Provided:Overseas third-party support available
wood machinery/hot press for bamboo boards/wood machine/plywood machine/plywood machinery
contact supplier for wood machinery/hot press for bamboo boards/wood machine/plywood machine/plywood machinery


hot press for bamboo boards./wood machine/wood machinery/plywood machine/plywood machinery

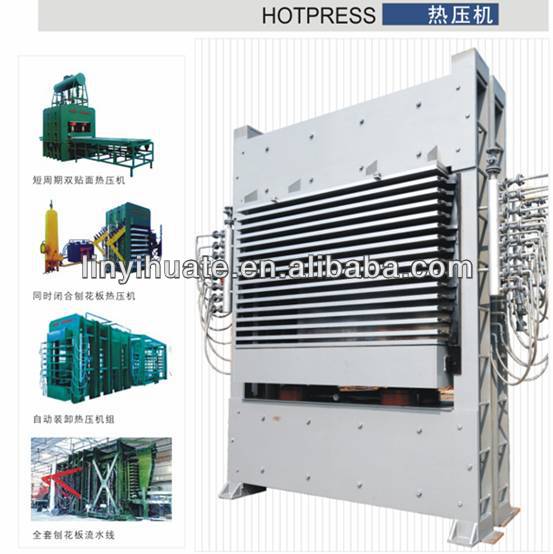

Hot press machine for bamboo veneer(4*8feet ,15layers, 800T)

quantity of layers15 pcs
Pressure800T
Quantity of cylinders4 pcs
Diameter of cylindersΦ320mm(alloyed material )
Stroke of cylinders1050mm
Origin of cylinderWuxi, China
No-load closing timeAbout 27s
hydraulic systemManual, automatic controlled(both are ok)
Pressure of hydraulic system25Mpa
Leading oil pump2 pcs of 250# oil pump(made in Shanghai, China)
Pressor oil pump25ml/rev plunger oil pump
Leading generator11KW
Pressor generator7.5KW
Dimension of bored board(or hot board)2700*1370*52mm
Origin of bored board(or hot board)Kunshan, China
Space between layers70mm
General dimensions3560*1370*4660mm
thickness of steel board40mm\22mm\12mm
Height of top crossbeam1000mm
Height of bottom crossbeam1000mm
Height of active crossbeam400mm
Dimension of active crossbeam2700*1370*400mm
wood machinery/hot press for bamboo boards/wood machine/plywood machine/plywood machinery
Packaging Detail:NUDE
Delivery Detail:22 DAYS
