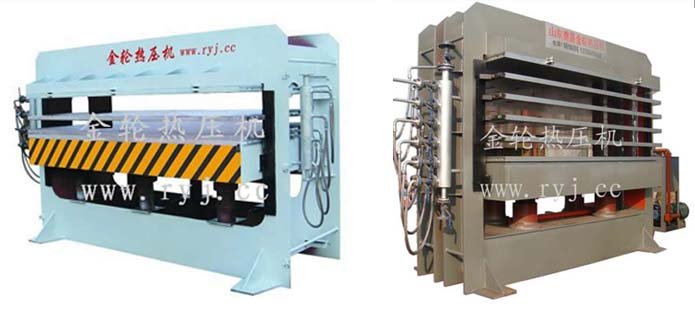

Wood Door Hot Press

Wood Door Hot Press, 1. Hydraulic Control System, 2. Hot Platen Size: 2500*1300*42mm, 3. Working Pressure: 200Tons, 4. Layers: 3 - details see: https://www.machineto.com/wood-door-hot-press-10357990
Place of Origin:Shandong China (Mainland)Brand Name:JINLUNModel Number:BY21-4*8/20
Wood Door Hot Press
contact supplier for Wood Door Hot Press


Wood Door Hot Press

TypeBY21-4x8/20-3
Working Pressure200 Tones
Hot Platen Size (L*W*T)2500×1300×42mm
Separation between Layers130mm
Cylinder No.& Diameter6units Φ140 mm Cylinders
Cylinder Stroke700mm
No-load Closing Time13s
Hydraulic SystemMicrocomputer manually /Automatic controlled
Control SystemMain pump: 100:100 Twin Pump
Main motor: 7.5kw
Pressurized pump: 5.5kw
Pressurized pump: 10ml/rev plunger pump
Heating SystemHot Oil
Upper&Bottom Crossbeams Thickness450mm,450mm
Plate Main Frame Thickness30,22,12 mm
Overall Dimensions (mm)2960×1300×2500mm

Wood Door Hot Press
Packaging Detail:N/M
Delivery Detail:30-45Days
