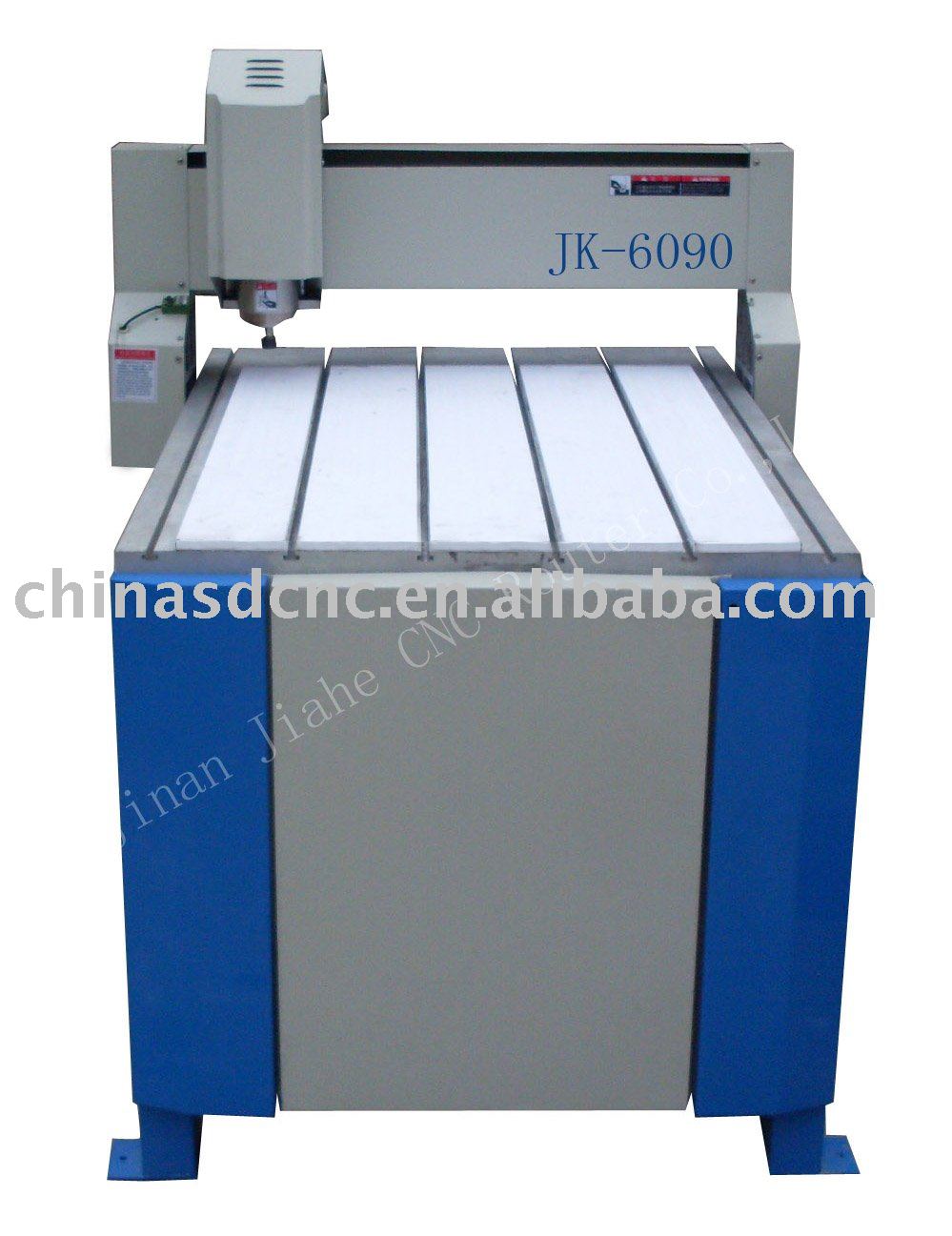

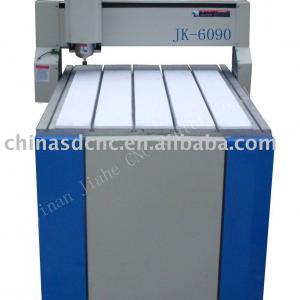

Wood CNC Machine / engraving machine JK-6090
| Condition:New | Place of Origin:Shandong China (Mainland) | Brand Name:Jingke | Model Number:JK-6090 |
| Work dimensions:600*900mm | Z-axis working area:200mm | Software:Type3,Artcut,Artcam software | Mechanical precision:0.015mm |
| Driver type:stepper motor | Cut thickness of material:0-100mm | Working speed:0-4000mm/min | X/Y/Z movement:Precision ball screw/Germany |
| Collet:Collet ER20 12mm, 12.7mm, 6mm, and 3.175mm | Spindle speed:0-24,000rpm |
Wood CNC Machine / engraving machine JK-6090 :
Features and performance:
1. can be used to carve letters or designs and work mould on iron, steel, bronze,aluminum,ect.
2.The DSP control system uses 128M memory and supports USB disk direct output, which is more advanced and practical.
3.The independent control cubicle is advantageous for maintenance and be much safer.
4.Main spindle features:
2.2KW frequency conversion water cooling spindle with long use life and big power.
Permanent power main spindle can guarantee powerful processing under any random rotational speed.
5.Memory to insure the processing point when the blade is broken or postpone situation.
PARAMETERS:
| Model | JK-6090 |
| Machine body | whole cast iron |
| Work dimensions | 600×900mm |
| Z-axis working area | 200mm |
| Body dimensions | 800×1200×1200mm |
| X/Y/Z movement | Precision ball screw/Germany |
| Guide linear | square rail/Taiwan |
| Cut thickness of material | 0-100mm |
| Max.Speed | 6000mm/min |
| Working speed | 0-4000mm/min |
| Machining pass | 5mm |
| Mechanical precision | 0.015mm |
| Software | Type3,Artcut,Artcam software |
| Power source | AC 220V/50-60Hz |
| Driver type | stepper motor |
| Spindle power | 2.2KW variable speed,water-cooled |
| Spindle speed | 0-24,000rpm |
| Tool diameter | 1-12.7mm |
| Collet | Collet ER20 12mm, 12.7mm, 6mm, and 3.175mm |
| Control system | DSP0501,128M |
| Command | HPGL.G code,u00,mmg,plt |
Guarantee & after sales service:
1. 1 year guarantee.
2. 24 hours technical support by e-mail or calling.
3. Use the English Manual and CD Video to know the operating and maintaining.
| Packaging Detail:standard plywood case for export |
| Delivery Detail:15 working days |
