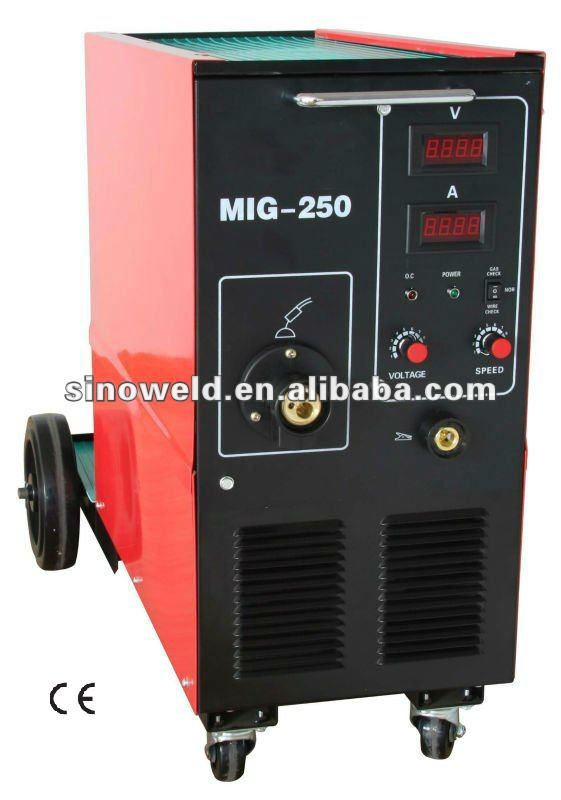

Wire Feeder Compacted Inverter MIG200 and MIG250 Welding Machine
1.MIG 200, 250 welding machine (mosfet), 2.Welcome OEM, 3.Suitable for 0.8/1.0mm mig wire, 4.Adjustable 50-200A, 5.CE approved - details see: https://www.machineto.com/wire-feeder-compacted-inverter-mig200-and-mig250-welding-machine-10136486
| Place of Origin:Zhejiang China (Mainland) | Brand Name:OEM Compacted Mig Inverter Welding | Model Number:MIG 200, 250 ( mosfet) | Wire Feeding Speed:2.5-13m/min |
| Dimensions:77 x 37 x 73cm | Weight:50/53KG | Usage:mig welding machine | Rated duty cycle (%):60 |
| Machine Type:Wire Feeder Compacted Inverter MIG200 and MIG250 Welding Machine |
Features for Wire Feeder Compacted Inverter MIG200 and MIG250 Welding Machine :
1.Suitable for welding thickness more than 0.8mm
2. Lower cost, high efficiency and excellent welding performance
3. Easy to operate, economical and practical
4. High welding speed, reliable arc-starting
5. Stable current, automatic compensation for voltage fluctuation
6. Suitable for welding mild steel and alloy steel, etc. applicable to different wires
7. Little spattering, deep penetration, beautiful welding seam
8. As an extra choice, we can add the function of MMA and Flux-cored mig welding into the same Wire Feeder Compacted Inverter MIG200 and MIG250 Welding Machine.
| Item | Unit | MIG200 | MIG250 |
| (mosfet) | (mosfet) | ||
| Power Supply | V | Single Phase | Single Phase |
| AC220±15% | AC220±15% | ||
| Input Power Frequency | Hz | 50/60 | 50/60 |
| Input Power Capacity | KVA | 6.4 | 8.8 |
| Output Current Range | A | 25-200 | 25-250 |
| Output Voltage | V | 12-28 | 12-30 |
| Wire Feeder Speed | m/min | 2.5-13 | 2.5-13 |
| Suitable Diameter of Wire | mm | 0.6-0.9 | 0.8-1.0 |
| Duty Cycle | % | 60 | 60 |
| Efficiency | % | 85 | 85 |
| Power Factor | cosΦ | 0.93 | 0.93 |
| Protection Class | - | IP21S | IP21S |
| Insulation Class | - | F | F |
| Gross Weight | kgs | 50 | 53 |
| Dimension of Packing | cm | 77 x 37 x 73 | 77 x 37 x 73 |
| Packaging Detail:1pc Wire Feeder Compacted Inverter MIG200 and MIG250 Welding Machine in a Carton with pollystyrene insert, carton size is 77 x 37 x 73cm |
| Delivery Detail:45days for Wire Feeder Compacted Inverter MIG200 and MIG250 |
