Wet-mix Shotcrete Machine for Construction from Manufactory

Wet-mix Shotcrete Machine, 1,simple structured;, 2,easy maintenance;, 3,high-effective, 4,long service life. - details see: https://www.machineto.com/wet-mix-shotcrete-machine-for-construction-from-manufactory-10096645

Condition:New	Max. Conveying Distance:20m	Max Aggregate Size:15mm	Hose Inner Diameter:511 mm
Air Consumption:10-15mÂ³/min	Place of Origin:Shandong China (Mainland)	Brand Name:china caol	Model Number:HSP-5
Voltage:380v or oters	Power(W):7.5KW, 5.5KW	Weight:260-700KG	Certification:ISO, SGS
Warranty:24 months	After-sales Service Provided:Engineers available to service machinery overseas

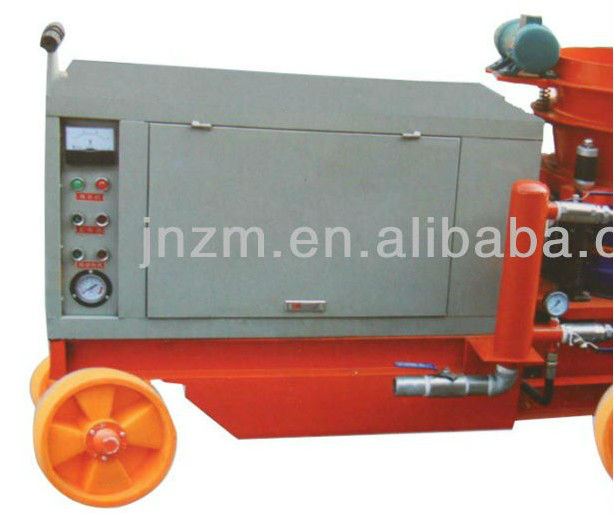

Wet-Mix Shotcrete Machine for Construction

Shotcrete machineis widely used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.

Wet-Mix Shotcrete Machine for Construction with features:

1,Advantages:This is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.

2,Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

3,Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.,

4,Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

item	HSP-5	HSP-7	HSP-9
Output	4-5 m³/H	5-7m³/H	6-9m³/H
Max. Convey dist	Horizontal:30m Vertical: 20m	Horizontal:30m Vertical: 20m	Horizontal:30m Vertical: 20m
Concrete proportion	1:4-5C/A	1:4-5C/A	1:4-5C/A
Water cement ratio	≤0.4	≤0.4	≤0.4
Hose inner size	Φ51m	Φ51m/64mm	Φ51m/64mm
Max. Aggregate size	15mm	15mm	15mm
Operating air pressure	0.3-0.6MPa	0.4-0.6MPa	0.4-0.6MPa
Air consumption	10-15m³/min	10-15m³/min	10-15m³/min
Rotor diameter	438mm	480mm(160)	480mm(175)
Spring rate level	≤10%	≤10%	≤10%
The accelerating liquid adding amount	0.3-0.7%	0.3-0.7%	0.3-0.7%
main Electric motor power	Y132m-6-5.5KW	Y160m-6-7.5KW	Y160m-6-7.5KW
vibration electric motor power	0.37KW	0.37KW	0.37KW
Accelerating metering pump	pneumatic	pneumatic	pneumatic
Electric Voltage	380V	380V	380V
Overall dimension(mm)	1280x700x1280	2000X800X1300	2000X800X1300
Whole weight	700kg	800kg	900kg
wheel	Nylon wheel ;Rubber wheel ;skid wheel ;Rail wheel
