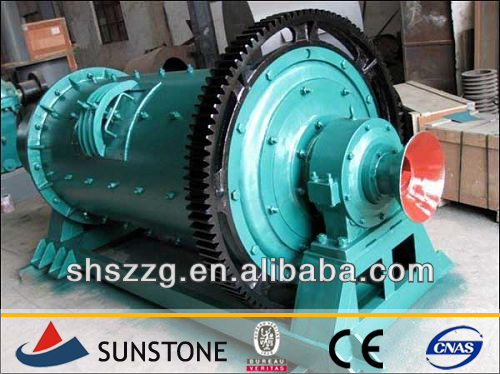

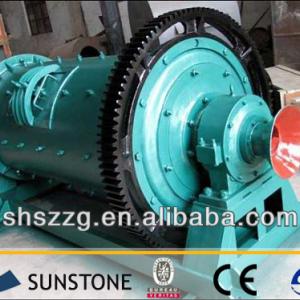

wet ball mill,ball mill liner,ball mill

ball mill, 1),economical, 2),good abrasion resistance, 3),stable operation, 4),reliable performance - details see: https://www.machineto.com/wet-ball-mill-ball-mill-liner-ball-mill-10314396

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5-800(kw)
Capacity(t/h):5.5-175T	Place of Origin:Shanghai China (Mainland)	Brand Name:Sunstone	Model Number:as per ur request
Dimension(LWH):depend on model	Weight:5.5-175T	Certification:CE,ISO	Warranty:13Month
After-sales Service Provided:Engineers available to service machinery overseas	colour:As required	application:Ore, stone, mineral griding	installation:supply
testing:supply	spare Parts:supply	Balls weight (t):1.5-110	Material-in size (mm):≤25
word of mouth:perfect	Output size (mm):0.074-0.89	Capacity (t/h):0.65-80

Application:

It will be widely used in cement, Silicate Products new building material, refractory material, fertilizer, black and nonferrous metal mineral processing and glass ceramics industry, etc

Material:

Quartz, feldspar, iron ore, manganese, copper ore, silica, etc

Technical Advantage:

Ball mill consists of feeding, discharge, turn, transmission (reducer, gear, motor, electric control) and other major parts. Hollow shaft adopts steel castings, lining can conversion, the slewing gear with cast roll teeth processing, cylinder body, wear resistant lining board with good abrasion resistance. The machine is stable operation and reliable performance. According to the row material and mineral, can choose dry grate ball mill and wet grate ball mill.

Operating principle:

The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Specification

Model	Rotational speed (r/min)	Balls weight (t)	Material-in size (mm)	Output size (mm)	Capacity (t/h)	Power (kw)	Total weight (t)
Ö 900x1800	36~38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.5
Ö 900x3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.7
Ö 1200x2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ö 1200x3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ö 1200x4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ö 1500x3000	29.7	7.5	≤25	0.074-0.4	2-5	75	16.8
Ö 1500x4500	27	11	≤25	0.074-0.4	3-6	110	21
Ö 1500x5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
Ö 1830x3000	25.4	11	≤25	0.074-0.4	4-10	130	29
Ö1830x4500	25.4	15	≤25	0.074-0.4	4.5-12	155	35.5
Ö1830x6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ö1830x7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ö2100x3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34.8
Ö2100x4500	23.7	24	≤25	0.074-0.4	8-43	245	38
Ö2100x7000	23.7	26	≤25	0.074-0.4	8-48	280	56.6
Ö2200x4500	21.5	27	≤25	0.074-0.4	9-45	280	51.8
Ö2200x6500	21.7	35	≤25	0.074-0.4	14-26	380	60

Project cases

Delivery site

Sunstone honor

1),Business license

2),CE

3),ISO9001:2008

4),Alibaba Gold supplier Approve

5),Alibaba Gold Supplier Assessment Certificate

6),China top 10 supplier

7),China Famous Brand

8),AAA Approve

9),AAA level Quality,Credit,Service Approve
