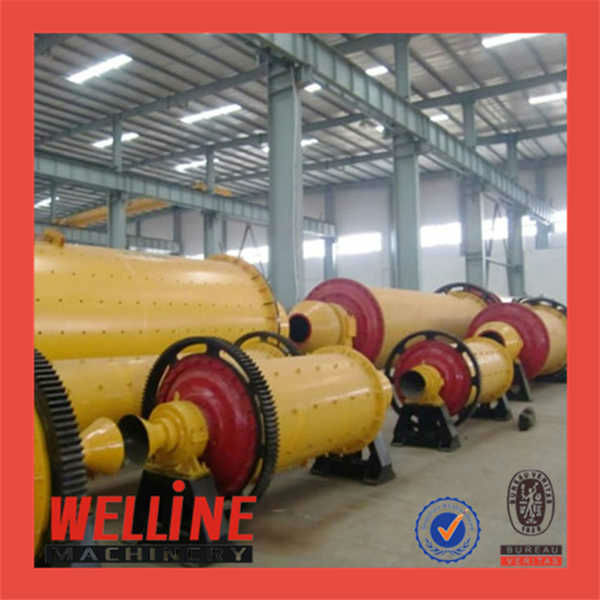

WELLINE high quality ball mill with best ball mill price

WELLINE Machinery mainly produces two kinds of ball mill, energy-saving ball mill and dry or wet type ball mill. We have rich experiences on R&D and producing ball mill machinery. The ball mill are popular and well recognised in asia, Mid-east, Russia, Latin America, etc. Mining grinding ball mill for ore, cement clinker, gypsum, glass, ceramic etc. The ball mill price is very competitive with good quality.

Ball mill Features:

1,The newly designed ball mill enhances grinding action and ore lifting capacity and decreases energy consumption.

2, The ball mill is easy to operate and saves energy up to 20-30%

3, WELLINE ball mill adopts whole milling house, which makes it easy for construction and installation.

4, Ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears

5, The ball mill has bigger discharge opening and huge processing capacity.

Ball mill Application:
The ball mill is an efficient machine for fine powder grinding and key equipment for grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mineral.

Ball mill is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other hardness materials.The final meshes could be evenly grinded into 37-200meshes.

Ball mill Structure:
The equipment consists of feeding, discharging part, turning part, a transmission part ( reducer, small transmission gear, motors, electrical control) and other major parts. Hollow shaft with steel castings, the liner is detachable, rotary gear hobbling with casting. Its cylinder liner wear studded body, has good abrasion resistance. The machine is running stable, reliable work.

Ball mill Work Principle:

Ball mill is a horizontal cylinder with rotary device, outer gear, double warehouses, grating type ball mill. Material from the feed device evenly into the mill screw shaft first warehouse, the warehouse has stepped lining board or corrugated liner, which is built with different specifications of steel balls, the rotation of the cylinder to generate centrifugal force will bring the steel ball to a certain height after the fall, the material produces severe impact and abrasive. Materials in the first position to coarse grinding, the board by the single compartment into the second warehouse, the warehouse lined with flat lining , steel ball inside, the material to further grinding.

Powder through the discharge grate and finish grinding operation eventually

Ball mill Technical data:

Model	Rotary Speed (r/min)	Ball load (t)	Feeding Size(mm)	Discharging Size (mm)	Production (t/h)	Power (kW)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5
900×2100	38	1.3-1.4	≤15	0.075-0.83	0.7-3.5	18.5
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	30
1200×2800	32	3.3-3.5	≤25	0.075-0.6	2-6	30
1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	45
1500×3000	27	8	≤25	0.074-0.4	2-5	75
1500×3500	27	6.75-6.4	≤25	0.075-0.4	3-7	75
1500×4500	27	14	≤25	0.074-0.4	3.5-12	110
1500×5700	27	15	≤25	0.074-0.4	3.5-8	115
1830×3000	24	18	≤25	0.074-0.4	4-10	130
1830×3600	24	10.6-11.35	≤20	0.075-0.4	5-22	130
1830×7000	24	25	≤25	0.074-0.4	7.5-17	210
2100×3600	22	14-15.2	≤25	0.075-0.4	15-36	370
2200×5500	21	30	≤25	0.074-0.4	10-22	210
2200×6500	21	31	≤25	0.074-0.4	14-26	380
2200×7500	21	33	≤25	0.074-0.4	16-29	380
2400×3000	20.6	15.5-16.6	≤25	0.075-0.4	22-24	245
2400×4500	21	30	≤25	0.074-0.4	8.5-60	380
2700×3600	20.6	39	≤25	0.074-0.4	12-70	400
2700×4000	20.7	40	≤25	0.074-0.4	12-80	400
2700×4500	20.7	48	≤25	0.074-0.4	12-90	430
3200×4500	18	65	≤25	0.075-0.4	accordingly	800

*Any change of ball mill technical data shall not be advised additionally.
