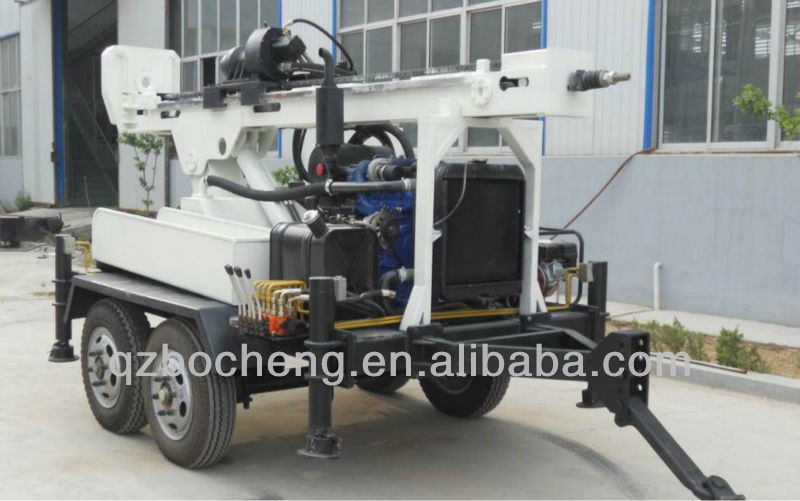

WD200T Trailer Mounted Water Well drilling Rig
1.Portable, 2.ISO certification, 3.High drilling depth, 4.Made by order trustworthy, 5.Easy operation - details see: https://www.machineto.com/wd200t-trailer-mounted-water-well-drilling-rig-10313069
| Condition:New | Type:Rotary Drilling Rig | Power Type:Diesel | Place of Origin:Shandong China (Mainland) |
| Brand Name:Bocheng | Model Number:WD200T | Usage:Water Well | Voltage:220 / 380 |
| Dimension(L*W*H):4540*1750*1900 mm | Weight:2177kg | Certification:ISO | Warranty:1year |
| After-sales Service Provided:Engineers available to service machinery overseas |
WD200T Trailer Mounted Water Well drilling Rig
| Technical Parameters | |||||||
| Drilling depth | m | 0-200 | |||||
| Bore diameter | mm | 100~225 | |||||
| Drilling rod | mm | Φ76 | |||||
| Rotation torque | N-m | 2232 | |||||
| Speed | rpm | 0 - 34 | |||||
| Head travel | m | 2.25 | |||||
| Drill pipe (diameter x length) | mm | 60/76 mm x 2 m | |||||
| Mud pump | L/min | 400 | |||||
| Weight | kg | 2177 | |||||
| Pull-up capacity | kg | 3813.09 | |||||
| Pull-up speed-slow feed | meter/min | 1.22 | |||||
| Pull-up speed-rapid feed | meter/min | 12.26 | |||||
| Pull-down speed-slow feed | meter/min | 0-1.88 | |||||
| Pull-down speed-rapid feed | meter/min | 0- 16.90 | |||||
| DRILL PIPE | |||||||
| Drill pipe length | m | 2 | |||||
| Drill pipe diameter | mm | 76 | |||||
| DIESEL ENGINE | |||||||
| 4 cylinders, 47 hp. at 3000 rpm, water cooled. | |||||||
| Power pack speed | rpm. | 3000 | |||||
| Load power pack max | hp. | 47 | |||||
| MUD PUMP | |||||||
| Flow capacity | liter/min | 400 | |||||
| Max. working pressure | bar | 6 | |||||
| HYDRAULIC SYSTEM | |||||||
| Hydraulic tank capacity | liter | 140 | |||||
| STABILIZING JACK (2 front jacks and 2 rear jacks.) | |||||||
| Bore | mm | 80 | |||||
| Stroke | mm | 480 | |||||
| DIMENSIONS | |||||||
| Overall length | mm | 4540*1750*1900 | |||||
| Packaging Detail:Container |
| Delivery Detail:15- 20days after an order |
