warping sizing machine

1.Beam Size (Max): 355 x 255 mm, 2.Back Creel: 160,192 ends ( can made by customer's require), 3.Width: 350 m/mm, 4.Moter: 1 HP - details see: https://www.machineto.com/warping-sizing-machine-10279092
Condition:NewPlace of Origin:Fujian China (Mainland)Brand Name:GINYIModel Number:GNW-160
Warranty:one yeartextile machine:GNW-160 Warping Machine
warping sizing machine
contact supplier for warping sizing machine

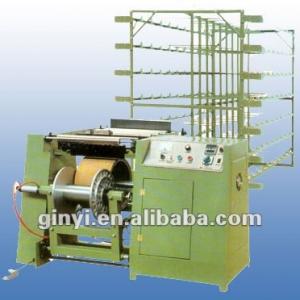

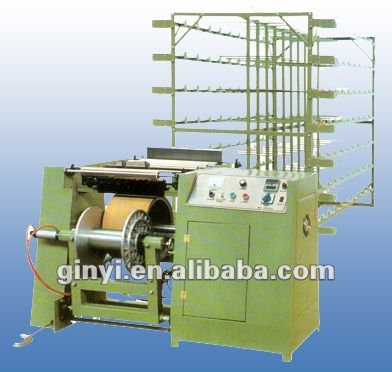

GNW-160 warping sizing machine

1.This warping machine is mainly used to warp kinds of unelastic yarn. Can adjust the yarn ends

depends on belt which will be woven. Beam max diameter is 355mm.

2.There are counter setted on machine, can set the length of yarn in need, then cut wastage. And also with auto stop device, avoid yarn loseing.

3.Tension spring on creal frame, will adjust the tenstion of yarn by required

Model

GNW-196

GNW-160

Creel ends

196

160

Width

350m/m

350m/m

Motor

1HP

1HP

Max beam size

355*255MM

Max speed

600M/MIN

1.The machine is high-efficient warper of all kinds of yarn.

2.The machine's head has the S type tension roller device and the auxiliary yarn sending device.

3.Cooperating with the tensioned on the creel, it can control the tension of the yarn precisely and make the warper smoother.

4.The creel is equipped with the yarn breaking rack that can stop the machine at once when yarn broken.

5.It has the indicating lamp that can observe the place of the broken yarn clearly.

warping sizing machine
Packaging Detail:strong wooden box.
Delivery Detail:10-20 Days after receipte of L/C at sight or by T/T in advancei
