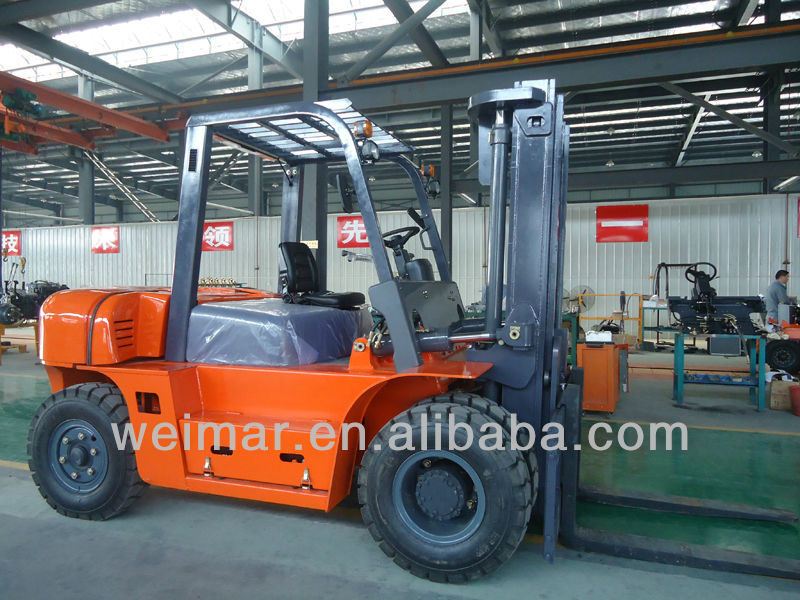

VIMAR diesel forklift truck CPCD50/60/70
With Chaochai 6102 diesel engine, lifting height from 3m to 6m;, pneumatic tire or solid tire are available ., 1220mm forks - details see: https://www.machineto.com/vimar-diesel-forklift-truck-cpcd50-60-70-10109789
Condition:New | Place of Origin:Anhui China (Mainland) | Brand Name:VIMAR | Model Number:CPCD50/60/70 |
Type:Powered Pallet Truck | Power Souce:Diesel Engine | Rated Loading Capacity:5000/6000/7000KG | Fork Length:1220MM |
Fork Width:150MM | Certification:ISO9001:2008 | Color:Requested by customer | |
SPECIFICATION | Model | | CPCD50 | CPCD60 | CPCD70 | Power type | | Diesel | Rated capacity | kg | 5000 | 6000 | 7000 | Load center | mm | 600 | Lift height | mm | 3000 | Free lift height | mm | 197 | Fork size | mm | 1220×150×55 | 1220×150×55 | Mast tilt angle | deg | 6/12 | Front overhang | mm | 590 | 590 | 590 |
Overall | Length to face of fork | mm | 4660 | 4735 | 4805 | Overall width | mm | 1995 | Mast lowerd height | mm | 2500 | 2500 | 2500 | Mast extended height | mm | 4420 | Overhead guard height | mm | 2450 | Turning radius | mm | 3250 | 3300 | 3360 | Min.right angle aisle width | mm | 2960 | 3000 | 3040 |
Speeds | Drive speeds | km/h | 0-10,0-28 | Lifting speeds | mm/s | 500/590 | 500/590 | 460/500 | Lowering speeds | mm/s | ≤600 | Max.grade ability | % | 19 | Total weight | kg | 7980 | 8640 | 9350 | Tires | Frot | | 8.25-15-14PR | Rear | | 8.25-15-14PR | Wheeslbase | mm | 2250 | Tread | Frot | mm | 1470 | Rear | mm | 1700 | Hold unde mast | mm | 190 |
Engine | Model | | Made in China 6102BG | Rated output | kw/rpm | 73/2200 | Rated torque | N.m/rpm | 290/1650 | No.of cylinder | | 6 | Displacement | L | 5.789 | Fuel tank capacity | L | 140 |
|
Packaging Detail:nude package in container |
Delivery Detail:30days after receipt of deposit |
