For material lifting, feeder & conveyor purpose, Features:1.low volume occupied,, 2.high capacity,, 3.low energy comsumption.. - details see: https://www.machineto.com/vertical-vibrating-conveyor-for-chemical-processing-10283849

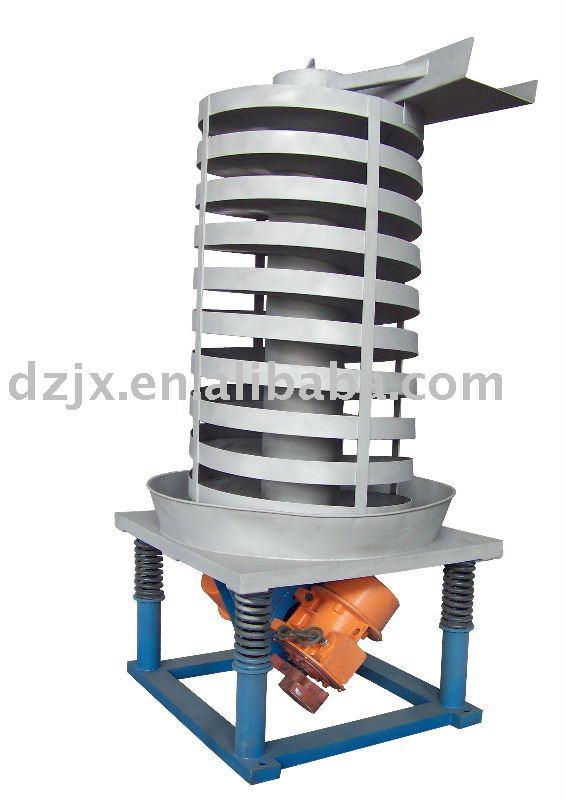

This machine can be named asvertical feeder; vertical transfer;vibrating elevator;The helix vibrating lifter...

Please find the detilas below:

The scope of application :

DZC series vertical elevator is applicable to materiels of powder, block and short fibre, and widely used inchemical industry ,rubber ,plastic ,madicine ,light industry,metallurgy,building materiel ,machinery ,mine ,foodand other industries.

The materiels not only can be lifted ,but also can be dried and cooled during the process of lifting .

There are two main types : open type and sealed type .

DZC series vertical elevator can be designed to classify the granules as well as conveying, and deal with flammable and explosive materiels according to different process requirements.

Features:

Reasonable and simple structure,easy maintenance,low power consumption, low noise.

This equipment occupies very little room, and the totally sealed structure can effectively advoid the dust and the harmful gas pollution.

Technological parameter

	DZC-1500	DZC-3000	DZC-4500	DZC-5000	DZC-9000	DZC-12000
Lifting capability(T/H)	0.6	2	4	5	6	8
lifting height(mm)	1500	3000	4500	6000	9000	12000
working frequency(R/M)	1500	1500	1000	1000	750	750
Power(KW)	2*0.4	2*0.75	2*1.5	2*2.2	2*3.7	2*5.5
Diameter of Spiral chute(MM)	121	192	242	296	329	357
Supply Voltage (V)	380	380	380	380	380	380
rated current(A)	2*0.85	2*1.5	2*3.0	2*4.4	2*7.4	2*11
resultant amplitude(MM)	1-4	1-4	1-4	1-4	1-4	1-4
Weight(KG)	300	650	1000	1500	2000	3000

Dimensions

	Φ1	Φ2	Φ3	L*L	H	H1	H2	H3	a*a
DZC -1500	325	159	550	480*480	1960	460	1500	121	580*580
DZC -3000	500	245	730	660*660	3590	590	3000	192	760*760
DZC-4500	650	325	980	890890	5290	590	4500	242	990*990
DZC -6000	780	402	1100	1030*1030	6090	590	6000	296	1130*1130
DZC- 9000	860	450	1200	1130*1130	9650	590	9000	329	12301*230
DZC -12000	920	500	1300	1230*1230	12790	790	12000	357	1330*1330

Please kindly contact with us for the details as per your application.

Other vibrating equipment is available, please feel free to contact us.

We'd like to supply you the best solution.
