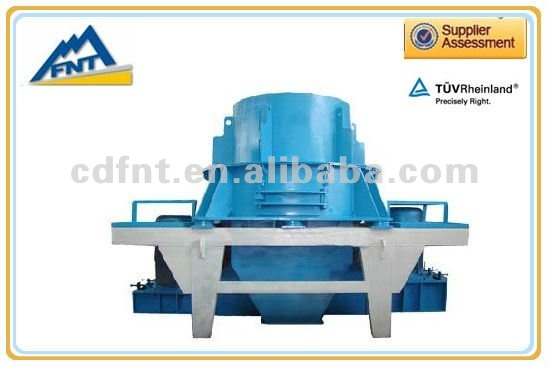

vertical shaft impact crusher sand making machine

sand making machin, 1. the sructure is simple and reasonable, 2.high efficiency and easy operation, 3.factory price - details see: https://www.machineto.com/vertical-shaft-impact-crusher-sand-making-machine-10310689

Condition:New	Type:Impact Crusher	Capacity(t/h):12--30(t/h)	Place of Origin:Sichuan China (Mainland)
Brand Name:Fu Naite	Model Number:PCL 600	Body material:cast steel	Warranty:after order within one year
install:our professional engineer

vertical shaft impact crusher sand making machine

contact supplier for vertical shaft impact crusher sand making machine

Vertical Shaft Impact Crusher Suitable materials:

1. mainly used for artificial sand making of river gravel, mountain stone(limestone, granite, basalt, diabase and andesite), ore tails and stone chips.

Vertical Shaft Impact CrusherApplied Area:

1.It is a world level of sand making device connecting the current sand condition and the newest technology and is widely used in highway, high train way, high-floor building, municipal project, hydroelectric dam building and concrete stirring. It shall be your first choice for sand making.

Vertical Shaft Impact Crusher Features:

1.Large capacity and high production volume: up by 30%

2.Lower consumption to wearing parts

3.Excellent products size and shape.

4.Hydraulic equipment to convenient maintenance.

5.Automatically thin lubricant maintenance

6.Simple installation and operation.

7.One for multiple usage flexibly.

8. International quality assurance – the newest international riveting and rustproof painting technology ensure low trouble rate.

9. Environmental – low noise and pollution and unique air-auto-cycling system as well as suitable to various dust cleaning device installation.

Vertical Shaft Impact CrusherTechnology reference

Model	Impeller speed (R/min)	Max feed size (mm)	Capacity (t/h)	Power (kw)	Overall Dimension (mm)
PCL 600	2000--3000	30	12--30	2x22	2800xΦ1500x2030
PCL 750	1500--2500	35	25--55	2x45	3300xΦ1800x2440
PCL900A	1200--2000	40	40--120	2x55	3750xΦ2120x2660
PCL900B	1000-1450	40	40--140	2x75	3750xΦ2300x2090
PCL1050	1000--1700	45	40--160	2x(90-110)	4480xΦ2450x2906
PCL1250	850-1450	45	40--300	2x(132-180)	4563xΦ2650x3716
PCL1350	800--1193	50	50--360	2x(180-220)	5340xΦ2940x3650
