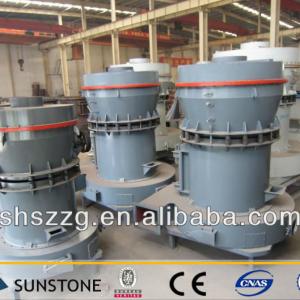

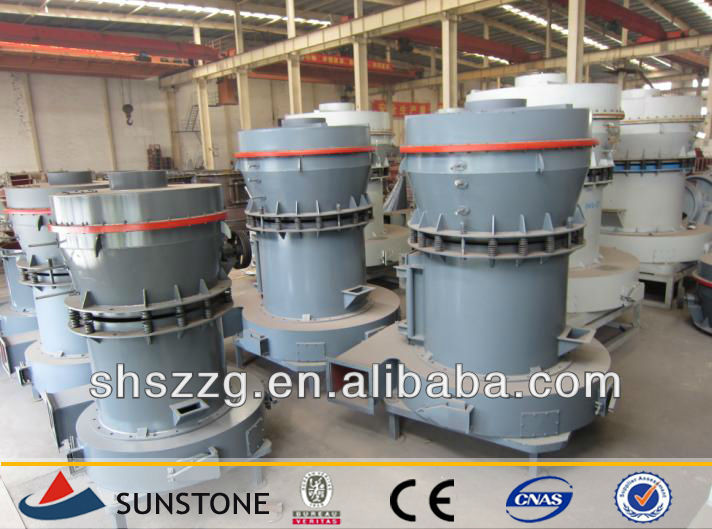

vertical roller grinding mill,mineral grinding mill,micro powder grinding mill

micro powder grinding mill, 1,low production cost, 2,good stability, 3,good size composition, 4,high performance - details see: https://www.machineto.com/vertical-roller-grinding-mill-mineral-grinding-mill-micro-powder-grinding-mill-10314078

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):18500-132000
Capacity(t/h):1.5-20	Place of Origin:Shanghai China (Mainland)	Brand Name:Sunstone	Model Number:YGM
Dimension(LWH):530041005200,etc	Weight:7T	Certification:CE,ISO	Warranty:13Month
After-sales Service Provided:Engineers available to service machinery overseas	colour:as ur request	price:welcome to ask me	quality:just try for it
market:all over the world	Diameter(mm):260-450	Height(m):150-280	Stuff Size(mm):15-35
Fineness of Product(mm:0.613-0.033	Power( kw):18.5-132	after-sales service:13Month

Application:

small and medium mine, chemical industry, building materials, metallurgy, refractory material, pharmacy, cement, etc

Material: The machinery is processing non flammable and explosive ore material under the condition of mohs hardness below 7 and humidity below 6% , such as gypsum, talc, calcite, dolomite, barite, limestone, marble, granite, kaolin, bauxite, most, iron ore, etc.

Technical Advantage:

1,It has low production cost, and high performance.

2,Solid structure, small coverage area, strong set, to make a production system from the block material to the finished products.

3,The fineness of the finished powder is uniform, passing sieve rate is 99%,and other grinding equipment is hardly available.

4,The machine has good stability and high reliability.

5,Important parts are made of high quality steel, and wear-resistant parts are made of high-performance wear-resistant materials, the wear resistance is high and it operate reliably.

6,The product has good size composition.

7,Electrical system adopts the centralized control, grinding workshop basic unmanned operation can be realized.

Operating principle:

While the high pressure grinding working, it will need to smash the materials come into inlet from the machine cover side to join in, rely on the suspension in the host plum flower shelf roller device, around the vertical axis of revolution, itself rotates at the same time, due to the effect of rotating centrifugal force, roller to swing, compressed in ring, the knife shovel up material to between rollers and ring, because of roller rolling rolling and achieve the goal of the crushed material.

Specification

Code No.		YGM7826	YGM8327	YGM9531
Roller	No.	3	3	3
	Diameter (mm)	φ260	φ270	φ310
	Height (mm)	150	150	170
Ring	Diameter (mm)	780	830	950
Ring	Height (mm)	150	150	170
Feeding size(mm)		<25	<25	<15
Fineness of product( mm)		0.025-0.005	0.025-0.005	0.025-0.005
Capacity(kg/h)		50-500	65-670	100-1000
Power	Main	18.5	22	37
Power	Classifier	7.5	7.5	7.5
Overall	Length(mm)	4500	5300	7100
	Width(mm)	4200	4100	5900
	Height(mm)	5100	5200	7900

Sales service

Our Tenet:

Good faith - based, quality as the most important thing.

Operation belief:

Casting sunstone brand and making customer satisfied are our eternal pursuit

Service tenet:

Responsible for every procedure, responsible for every product, and every user.

Service concept

Our company has won many honors, and we take quality as life and user as God.The user is all we have.We will continue to follow the quality policy responsible for each charge, for each product, for every user, dedication to customer service.Everything we do will be best for your sake. We are convinced that: to you a sincere heart can get sincere repay.

Our employees have already established a good service concept: we will repair timely when user’ machine is at fault; provide project design, process design for user at the pre-sale; the user's equipment purchase plan; provide quality products; patience and thoughtful user training; timely and effective repairmen t and on behalf of the user test to solve difficult processing problem.

Service commitment

Pre-sales service:

to provide you the project design, process design, suitable for your machine equipment purchase plan, according to your special needs, design and manufacture of products, for your training technical personnel.

Sale of services:

to accompany you to complete the equipment acceptance, to assist in the formulation of construction scheme and detailed process.

After sale service:

the company sent technical personnel to the scene to guide the installation, debugging and training of operators.

24-hour service, including holidays service.

Our company:

Shanghai Sunstone Heavy Machinery CO., Ltd. is a collection of R &D, production, sales and service in the integration of high-tech enterprises. Employed for more than twenty years, it is all along worked on ore crushing, sand making and pulverizing equipment, provided high-level application solutions and high-end complete sets of equipment. For highway, railway, large engineering projects of hydroelectric.
