Not only does it let you work with Ready Gel precast gels as well as hand-cast gels, it is quite simply the easy-to-use system. - details see: https://www.machineto.com/vertical-gel-electrophoresis-cell-ve-180-10300007

Glass plates with permanently bonded spacer guarantee perfect alignment and leakfree casting
Glass spacer plates are thicker to reduce breakage
Casting frames with simple cam closure provide precision alignment on any flat surface
Plastic combs do not inhibit polymerization as Teflon combs do, and have a built-in ridge to eliminate air contact during polymerization
Glass plates and combs are marked with thickness and number of wells for instant identification
Self-governed casting stand allows access to and cast personal gels
The spring-loaded lever design creates a tight seal against the soft rubber gasket
Sample loading guides aid in sample application by preventing skipping of lanes
You can run either Ready Gel precast gels or hand-cast gels in the VE-180 electrophoresis module
The VE-180 electrophoresis module runs two gels at once, or one gel using the molded one-piece buffer dam

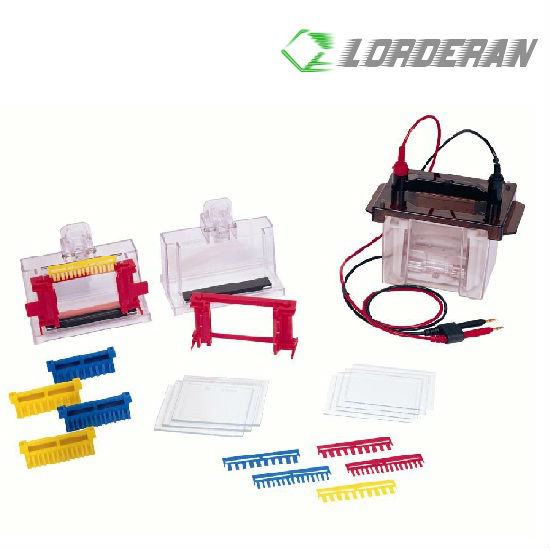

VE-180 cell for running hand-cast or precast PAGE and SDS-PAGE gels

Gel size	8.3×7.3 cm (W×L)
Glass plate size
Short plate	10×7.3 cm (W×L)
Spacer plate	10×8.3 cm (W×L)
Typical upper buffer volume	120 ml
Typical lower buffer volume	180 ml
Typical run times for SDS-PAGE	45 minutes

VE-180 Maximum Sample Volume per Well

Number of Well	0.75mm	1.0mm	1.5mm
10	22μl	44μl	66μl
15	20μl	26μl	40μl
