vertical ball mill / limestone grinding ball mill / energy-saving cone ball mill

vertical ball mill / limestone grinding ball mill / energy-saving cone ball mill

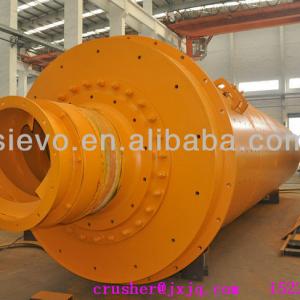

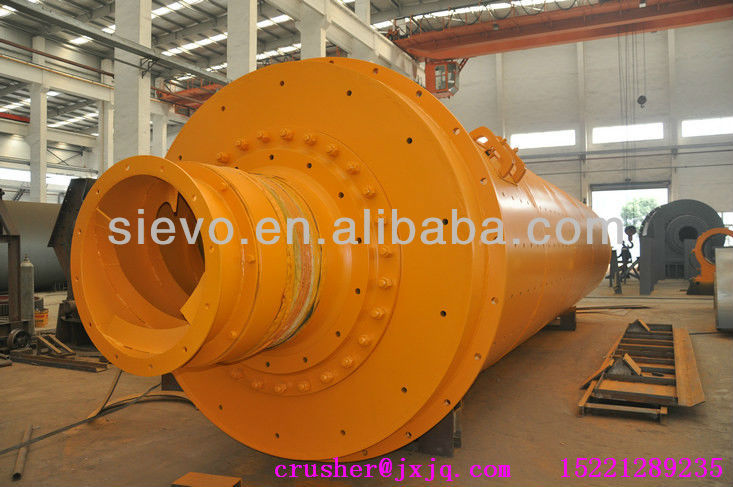

Ball Mill is the key equipment for secondary grinding after crushing.And it is suitable for grinding all kinds of ores

and other materials,no matter wet grinding or dry grinding. Besides , it is mainly applied in many industries ,such

as ferrous&nonferrous metal mine,building materials,chemical ,electric power ,coal ,traffic ,light industry ,etc.In our

company ,this series of highefficiency ball mill adopts rolling bearing support instead of sliding bearing support

with bearing bush.Therefore,it can save energy by 1020%. According to different discharging ways, it can be

divides into two kinds,grate type and overflow type.

Energy-Saving Ball Mill Application:

EnergySaving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to

75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with

oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as

screens,spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball

mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of

mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.

There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and

flowing type according to different forms of discharging material.

Energy-Saving Ball Mill Features:

1) is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and

crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the

ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make

ceramic glaze, powder various chemicals.

Energy-Saving Ball Mill Working Principle:

The EnergySaving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are

transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and

different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings

the steel balls to a certain height and impact and grind the materials. The ground materials are discharged

through the discharging board thus the grinding process is finished.
