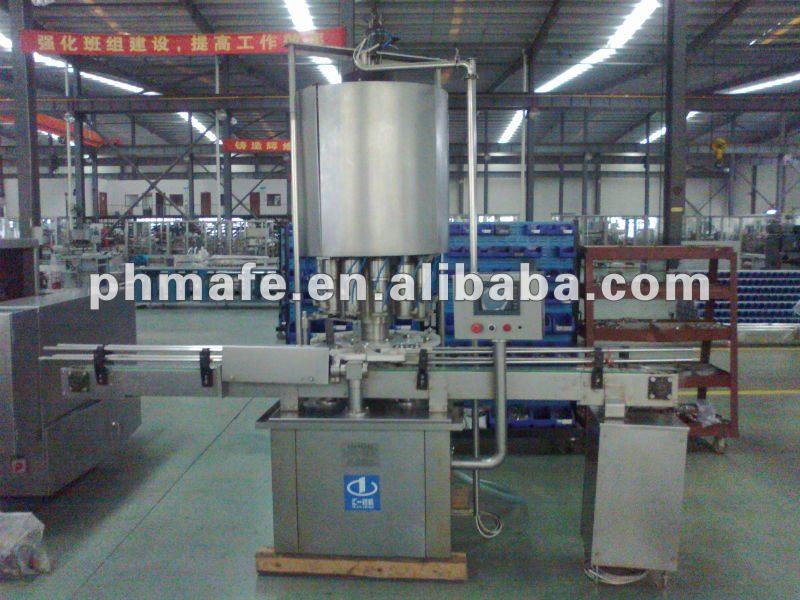

Vacuum Nitrogen Filling and Capping Machine

Vacuum Nitrogen Filling and Capping Machine, Applicable size:100ml,250ml,500ml glass bottle, Capacity:80-120bts/m - details see: https://www.machineto.com/vacuum-nitrogen-filling-and-capping-machine-10054239

Type:Capping Machine	Condition:New	Application:Medical,Machinery & Hardware,Vacuum Nitrogen Filling and Capping Machine	Driven Type:Electric
Automatic Grade:Automatic	Voltage:380v/50Hz	Power:3kw	Packaging Type:Bottles
Packaging Material:Plastic	Place of Origin:Hunan China (Mainland)	Brand Name:FE	Model Number:CCSY16
Dimension(LWH):Vacuum Nitrogen Filling and Capping Machine	Certification:GMP/CE	After-sales Service Provided:Engineers available to service machinery overseas	standard:CE/GMP
Applicable size:100ml,250ml,500ml glass bottle, T rubber stopper	Capacity:80-120 bottle/min(vacuuming and nitrogen filling);	Stopper supplying heads:16	Nitrogen filling heads:16
Vacuuming heads:16	Electric capacity:3.5KW AC380 50Hz;	Nitrogen pressure:0.03--0.05MPa	Nitrogen consumption:40--50ml/bottle
Vacuum pump air suction amount:more than 200 m³/hour

Vacuum Nitrogen Filling and Capping Machine

1. Main Application

The equipment is suitable for glass IV solution products vacuuming, nitrogen filling, and stoppering etc

2,Main technical parameter:

Applicable size:100ml,250ml,500ml glass bottle, T rubber stopper;

Capacity:80-120 bottle/min(vacuuming and nitrogen filling);

Stopper supplying heads:16,Nitrogen filling heads:16,Vacuuming heads:16;

Electric capacity :3.5KW AC380 50Hz;

Nitrogen pressure:0.03--0.05MPa Nitrogen consumption:40--50ml/bottle;

Vacuum pump air suction amount:more than 200 m³/hour Air suction pressure:about 33mbar;

Residual oxygen:less than 1.0%;

Stoppering qualified rate:99%

3,Performance characteristics

A,Adopts large capacity electromagnetic hopper, reduce the labor intensity.

B,Vacuum stoppering and mechanical positioning, only when the stoppers is in the accurate place it can go to the stoppering station, high qualified rate.

C,The machine uses the microcomputer frequency modulator to do the frequency speed adjustments. The capacity can be stepless speed regulated within the rated capacity with easy, no noise, safe and reliable characteristics;

D,Equipped with bottle mouth positioning units, good centering. Bottle enters continually, running stable, and high efficiencies.

E,Low residual oxygen after vacuuming and stoppering.( ensures less than 1.0%)

F,High automatic, can adjust the vacuuming time, nitrogen filling time and the number time of vacuuming and nitrogen filling.
