Upper molding machine
Upper molding machine is used to make one color, double color and three color uppers for slippers and sandals with PVC material. - details see: https://www.machineto.com/upper-molding-machine-10267148
Place of Origin:Fujian China (Mainland) | Brand Name:NEW KCLKA | Model Number:EK-6506A |

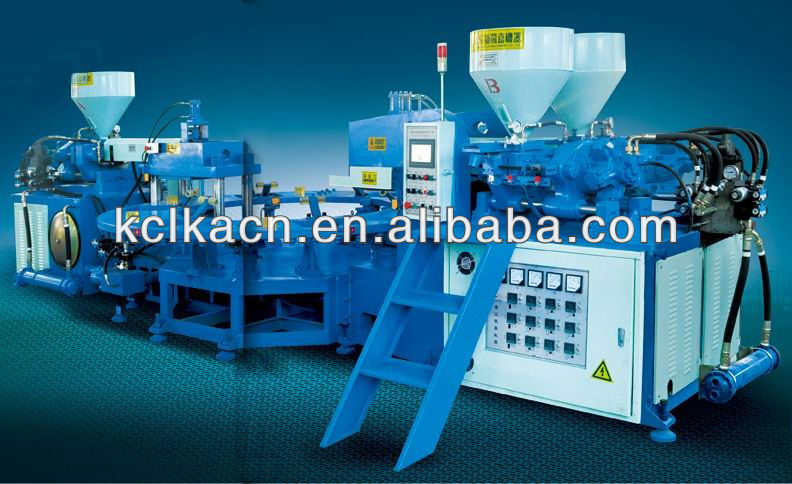

Upper molding machine EK-6506A
Feature:
1. This machine is specialized in single color, double color and three color uppers for slippers and sandals with the raw material of PVC;
2. Humanized man-machine interface, PLC controlling, touch-screen display.
3. Double-ratio hydraulic system;
4. Accurate digital measurement;
5. Rational layout, easy to operate and it can be run without professionals;
6. Energy-saving ,less laborer, high production;
7. Master and slave can be exchanged mutually to use, it has stronger adaptability, single color, double color and three color can be chosen freely.
Specifications:
Item | Unit | Specification | |
Model | EK-6506 | EK-6506A | |
Raw material | PVC | PVC | |
station number | Pcs | 6,8 ,10 | 6,8 ,10 |
Screw diameter | mm | 50, 45x2 | 50, 45x2 |
Screw speed | r/pm | 0-190 | 0-190 |
Max Injection capacity | cm3 | 300, 240x2 | 300, 240x2 |
Injection hydraulic | Mpa | 95,105*2 | 95,105*2 |
Clamping force | Kn | 60T | 80T |
Power of motor | kw | 11*2 | 11*2 |
Heating power | kw | 18 | 18 |
Limit of temperature | point | 4 | 4 |
Machine size | mm | 6300*2550*1800 | 6300*2550*1800 |
Machine weight | Kg | About 6000 | About 6500 |
Daily Production | Pairs/24 hours | 8000-10000 | 8000-10000 |
Packaging Detail:Machines will be packed in suitable export package. |
Delivery Detail:30 days after receiving the 30% deposit. |
