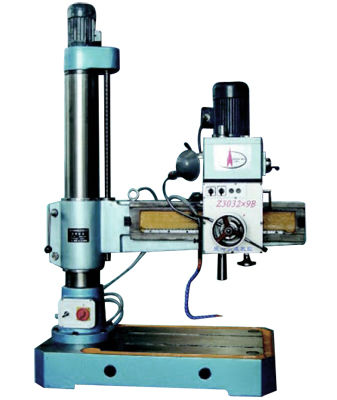

universal radial drilling machine
universal radial drilling machine - details see: https://www.machineto.com/universal-radial-drilling-machine-10125046
| Condition:New | CNC or Not:Normal | Model Number:Z5032 | Voltage:380V |
| Power(W):1300/1800 | Dimension(L*W*H):1400x700x2020 | Weight:650/600kg |
technical parameters
| Technical parameters | Z3032×9B |
| Maximum boring diameter | 32mm |
| main shaft hole Morse taper | 4 NUM |
| Spindle distance traveled | 150mm |
| From the centerline of the main shaft to column bus bar | 285-870mm |
| Main shaft in a horizontal moving stroke | 585mm |
| Spindle end surface countertops distance to base | 105-1015mm |
| Spindle stroke on post | 910mm |
| Spindle speed series | 6class |
| Spindle speed range | 108-1000rpm |
| Spindle feed series | 3class |
| Main shaft feed range | 0.10; 0.16; 0.25 |
| main motor model | YD100L1-6/4 |
| main motor power | 1.3/1.8kw |
| Elevating motor model | YS8014 |
| Water pump motor power | 40W |
| overall dimensions (length x width x height) | 1400x700x2020mm |
| NET WEIGHT | 950kg |
| Packaging Detail:wooden package |
| Delivery Detail:about 15 days after the deposit |
