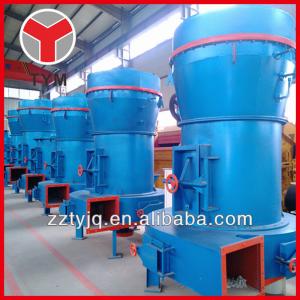

Universal mineral grinding machine stone grinding mill

1.Grinder millApplication

Grinder millmachine is used for grinding the material below scale 6 of mohs hardness and 250-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing, such as talcum, barite, marble, limestone, charcoal blacks.

2.Grinder mill Structure

Grinder millcombination of the mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, electric control cabinet, make the production of the powder environmentally friendly.

3.Grinder mill characteristic

1.Wide applicationscope,can use to crush materials less than 6 moth of hardness.

2. Under the effect of high pressure spring, the fineness of final product is increased greatly.

3. Compared with Jet Milling, the energy consumption is lower.

4.Less investment,high efficiency, recycling fast

5. Independent system, less Production links, materials less than 25mm can be put into processing directly.

6. No pollution, dedusting effect is completely meet national standards.

7.Thesealing effectof grinding roller device is good.

4.Technical Data ofgrinder mill:

Model	YGM7826	YGM8327	YGM9531	YGM3220
Number of rollers(pcs)	3	3	4	3	4
Diameter of rollers(mm)	260	270	310	320	320
Internal diameter of ring(mm)	780	830	950	970	970
Rotational speed of main unit(r/min)	160	140	130	148	130
Max. feeding size(mm)	20	20	25	20-25	20-25
Capacity(kg/h)	25-500	30-680	150-1000	2000-5800	2000-6000
Motor of the main unit(power)	Y225M-8-18.5	Y225M-8-22	Y225S-4-37	Y225S-4-45
Motor of the blower(power)	Y160L-4-15	Y180M-4-18.5	Y200L-4-30	Y200L-4-37
Motor of the classifier(power)	Y160M-6-7.5	Y160M-6-7.5	Y160M-6-7.5	YCT200-4A-11
Total power(kw)	41	48	74.5	93
Overall dimension(m)	4.5×4.2×5.1	5.3×4.1×5.2	7.1×5.9×7.9	7.1*5.9*7.9
Weight(T)	4.8	6	11.5	13.2
Diameter of final particle(mesh)	500 mesh to 1250 mesh, the finest can reach 2500 mesh.			20-425 mesh, the finest can reach 1000 mesh.

1.The full set of grinder mill

2.Grinder Mill in stock

3.The spare parts of grinder mill

4.Delivery loading of grinder mill

5.Certifacate

6.Final powder grinded by grinder mill

7.Customer

How is the quality of your products?

Our products are manufactured strictly according to national and international standard,

and we take a test on every grinder before delivered out. If you want see our quality certifications

and all kinds of testing report, please just ask us for it.

Guaranteed:

If products’ quality don’t accord to description as we give or the promise before you place order,

We promise 100% refund.

How about price?

Yes, we are factory and be able to give you lowest price below market one,

and we have a policy that “ for saving time and absolutely honest business attitude,

we quote as lowest as possible for any customer, and discount can be given according to quantity”,

if you like bargain and factory price is not low enough as you think, just don’t waste your time.

Please trust the quotation we would give you, it is professional one.

Why should we choose you?

Chose happens because of quality, then price, we can give you both

Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.

Our service formula: good quality+good price+good service=customer’s trust

Payment & shipping terms:

1.Price:FOB USD 1000-90000/set(negotiation)

2.Minimum Order Quanlity(MOQ):

3.Port:Shanghai;qingdao,(negotiation)

4.Packaging Details:Standard Container, Nude Packs or in Bulk.

5.Delivery Time:15-30 days

6.Payment Terms:L/C,T/T

7.Supply Ability:25-35 set per Month

Service Standards of Our Company:

Pre-sale:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) training technical personnel for clients.
(4) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.

Sale:
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user satisfaction

8.The grinder mill install in Pakistan
