1.ISO9001 & CE, 2.Siemens motor, 3.Photo-electric safety protection, 4.Ball screw & line guide back gauge, 5.Easy operation - details see: https://www.machineto.com/uminum-composite-panel-bending-machine-10123553

First:Technical Data

No.	Specification	Value	Unit
1	Nominal pressure	1000	KN
2	Length of working table	3200	mm
3	Distance between uprights	2450	mm
4	Throat depths	320	mm
5	Stroke	120	mm
6	Open height	380	mm
7	Motor power	7.5	Kw
8	Overall dimension	3460×1500×2150	mm
9	Weight	6600	Kg

Second:Specification

1.Bending thickness is calculated on the basis of tensile strength not greater than 450N/mm².

2.Total Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity.

3.Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.

4.Mechanical stop and steel torsion bar to maintain synchronization and high precision.

5.Electric adjustment, manual fine adjustment, and digital display for backgauge distance and stroke of up ram.

6.Deflection compensation unit installed on the up die or on the down die if the operating pressure is 63t or above.

7.Safe fence,the electric interlocker and safety light curtain have been designed for the machine to ensure the operation safety.

8.The drive element of backgauge adopts imported ball screw and linear guideway.

9.All oil tubes are connected by tube inserting avoid danger caused by welding.

10.The equipment automatic hydraulic crowning system can compensate the bending tolerance caused by the ram torsion.

Third:Stndard export equipments

No.	Item	Remark
1	Motor	Dazhong(China)
2	Gear pump	Chengjie(China)
3	Casting connector	Cast.o(Italy)
4	Main electric parts	Siemens(Germany)
5	Hydraulic system	Rexroth(Germany)
6	Sealing rings	Valqua CO.(Japan)
7	Linear bearing rod	KBS(Hangzhou,China)
8	Ball screw and line guide	Hiwin(Taiwan,China)
9	E10 DRO	Estun(China)

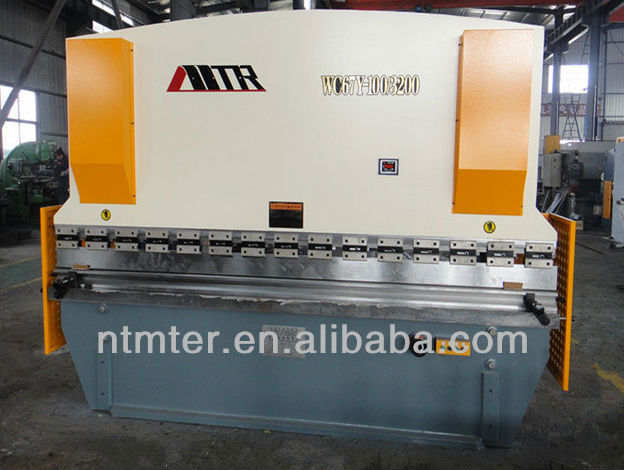

Four:Pictures of machines and factory
