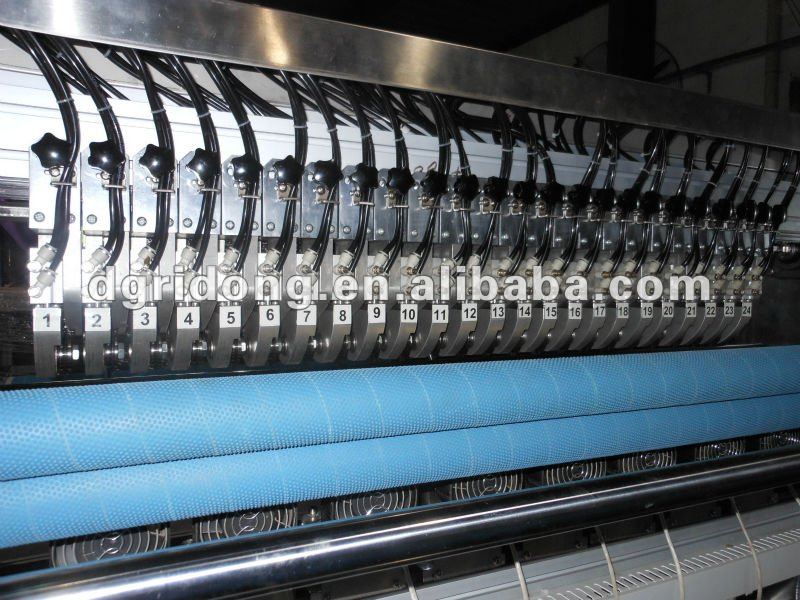

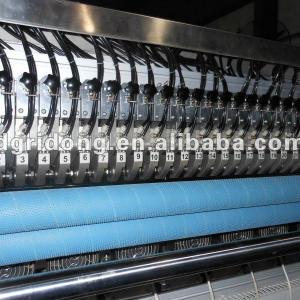

Ultrasonic Nonwoven Fabric Slitting Machine

Nonwoven Fabric Slitting Machine, 1.slitting all kinds of blind fabrics, 2.slitting with edge seal, 3.rewinding after slitting - details see: https://www.machineto.com/ultrasonic-nonwoven-fabric-slitting-machine-10279091
Condition:NewType:fabricPlace of Origin:Guangdong China (Mainland)Brand Name:Ridong
Model Number:FTJ-03Voltage:220/380VACPower(W):8.2kwWeight:1200KG
Dimension(L*W*H):4030*1700*1300mmCertification:CEWarranty:1year and lifelong technical supportAfter-sales Service Provided:Engineers available to service machinery overseas
function:slitting vertical blinds,nonwoven cloth,etcshape:verticalPower::380/220 VAC 50/60HzRated power::9.0KW
Work pressure::0.3~0.5 Mpa
Ultrasonic Nonwoven Fabric Slitting Machine
contact supplier for Ultrasonic Nonwoven Fabric Slitting Machine


Ultrasonic blinds slitting machine

>Function:
Blinds fabric slitting machine mainly does the slitting job of big pieces of fabric,for cutting fabric into narrow strips,with the PLC as controlling core and ultrasonic as the cutting energy source. The operator control machine by GUI (graphic user interface).

Machine is highly automatic , with the function of auto adjustment of the fabric edge and its precision, control ultrasonic start and stop,The machine can auto record the production number.

>Outstanding features:
1. Ultrasonic & automatic slitting
2. Cutting Speed adjustable
3. Width between cutting blades and fabric width adjustable
4. Metric or imperial operation, double languages by your choose
5. Quick & accurate
6. Panel GUI control
7. User friendly
8. Auto roller feeding & rewinding
9. Auto cutting and edge banding or sealing at the same time
10.the machine cutting width could be:2.0m/2.5m/3.0m/4.0m (or design by customize)

>Technical Parameters:
Machine: Ultrasonic Blinds Fabric Slitting Machine
Model No.: FTJ
Min slitting width: 80-1000mm ...by customised
Slitting speed: 18-30 m/min
Work pressure: 0.3~0.5 Mpa
Power: 380/220 VAC 50/60Hz
Rated power: 9.0KW

Dimension(L*W*H): 3130*1700*1300mm(2.0m)
Packing: 3560*1800*1430(2.0m)
CBM 9.163(2.0m)
N.W.: 1420kg(2.0m)
G.W.: 1520kg(2.0m)
Dimension(L*W*H): 3630*1700*1300mm(2.5m)
Packing: 3930*1800*1430mm(2.5m)
CBM 10.115(2.5m)
N.W.: 1600kg(2.5m)
G.W.: 1700kg(2.5m)


>Applicable products:
vertical blinds,sunscreen,shades/roller blinds,wiper cloth, Roman blinds,valance,drapery,awning,table runner,eye glass cloth,non-woven cloth,projector screen cloth, place mat.

>slitting narrow stirps:

>Package:

>after-sales Service:

1.Free warranty period for first year. We are supply the parts on free except non-normal damage
2. The supplier offers the part of a part of the equipment and relevant spare part to charge costs separately after free guarantee period.
3. Over of the Free warranty period, the user must pay the cost of replacement parts.
4.after the warranty period, provides the technical support and the compensated service.

Ultrasonic Nonwoven Fabric Slitting Machine
Packaging Detail:packing with normal export wooden case
Delivery Detail:14-20 days after confirm the first payment
