ultrafine milling machine, ultrafine grinding mill
ultrafine milling machine, ultrafine grinding mill, 1.Reliable., 2.High capacity., 3.Low cost. - details see: https://www.machineto.com/ultrafine-milling-machine-ultrafine-grinding-mill-10314817
| Condition:New | Type:Raymond Mill,Mill | Motor Type:AC Motor | Capacity(t/h):Various |
| Place of Origin:Shanghai China (Mainland) | Brand Name:Zenith | Model Number:Various | Guarantee/Warranty:Quality approvals |
| Application:Ore |

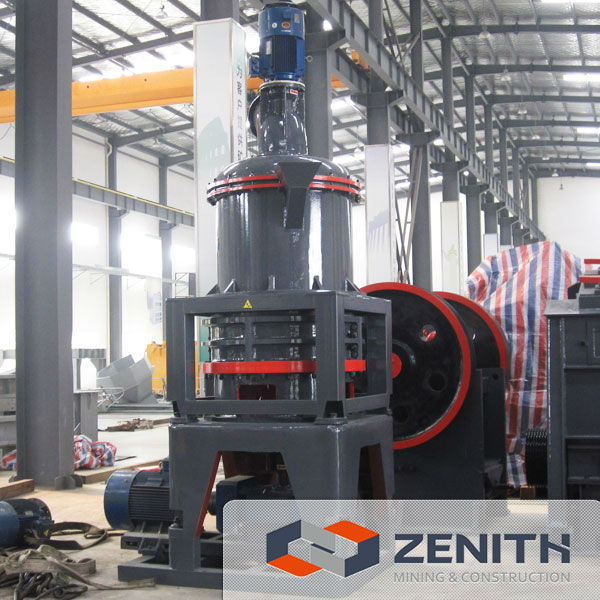

Ultrafine milling machine, ultrafine grinding mill
TheUltrafine milling machineis mainly used for grinding the material with middle and low hardness, below 6% moisture, and the material should be non-explosion and non-flammability, such as: calcite, chalk,limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite,iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite,barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassiumore pumice, etc
Ultrafine milling machineFeatures:
1. Reliable
2. High capacity and low cost
3. Easy adjustment of product fineness
4. Clean, environmental protection
2. High capacity and low cost
3. Easy adjustment of product fineness
4. Clean, environmental protection
Ultrafine milling machineTechnical Data:
| Tab 1: | |||
| item | XZM215 | XZM221 | XZM227 |
| Number of roller(piece) | 15 | 21 | 27 |
| Ring diameter(mm) | Φ600 | Φ 800 | Φ1000 |
| Number of ring (piece) | 2 | 2 | 2 |
| main equipment rotate speedr/min | 235 | 235 | 235 |
| Max. inlet sizemm | <10 | <10 | <10 |
| Final size (mesh) | 3252500 | 325-2500 | 325-2500 |
| Capacitykg/h | 350-2500 | 6004000 | 9006000 |
| Overall sizem | 10×2×5.5 | 12.4×2.5×5.8 | 14.5×3.8×6.3 |
| Note: If there is any change of above specification, it is all according to the booklet with machine. | |||
| Tab2: | |||||
| Basic data | Item | Unit | specification | ||
| XZM215 | XZM221 | XZM227 | |||
| motor of main machine | Model | - | Y250-4 | Y250-4 | Y250-4 |
| Power | kw | 37 | 55 | 90 | |
| classify Frequency modulation motor | Model | - | Y180M-4 | Y180M-4 | Y180M-4 |
| Power | kw | 11 | 18.5 | 30 | |
| Motor of elevator | Model | - | Y100L-4 | Y100L-4 | Y100L-4 |
| Power | kw | 3 | 3 | 3 | |
| Motor of blower | Model | - | Y225M-2 | Y225M-2 | Y225M-2 |
| Power | kw | 30 | 45 | 75 | |
| Hammer crusher | Model | - | 250-400 | 250-400 | 250-400 |
| Power | kw | 5.5 | 5.5 | 5.5 | |
| Electromagnetism Vibrating feeder | Model | - | GZ1F | GZ1F | GZ1F |
| Power | kw | 0.06 | 0.06 | 0.06 | |
| discharge valve | Model | - | ZJD-140 | ZJD-140 | ZJD-140 |
| Power | kw | 0.75 | 0.75 | 1.1 | |
| Pulsed duster | Model | - | BMC72-11 | BMC72-11 | BMC72-11 |
| Power | kw | 3 | 3 | 3 | |
| Note: If there is any change of above specification, it is all according to the booklet with machine. | |||||
| Packaging Detail:Standard Container |
| Delivery Detail:30 Days |
