Tube-mill

1.Low energy consumption;, 2.Easy operation;, 3.Best competitive price;, 4.Customized products;, 5.ISO9001. - details see: https://www.machineto.com/tube-mill-10314002

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):6300 KW
Capacity(t/h):according to the process,0.65-90	Place of Origin:Jiangsu China (Mainland)	Brand Name:Wenao	Model Number:5*8.5m
Weight:559.7T	Certification:ISO9001:2008	Warranty:14 Months	After-sales Service Provided:Overseas third-party support available
Feeding size:<=25 mm	finish fineness:3500±100c㎡/g	Feed water ratio:≤0.5%	Rotary speed:1194r/min
Rated power:6300 KW	Rated voltage:13.5 KV	Transmit power:6300 KW	Input speed:1194r/min
Output speed:14.5r/min

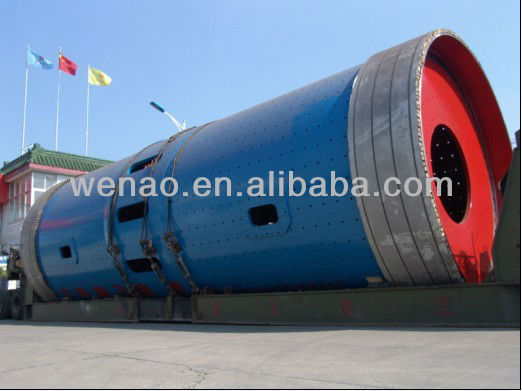

Tube Ball Mill

Tube Ball Millis major equipment of cement plant and used for drying and grinding coal. The equipment is mainly consisted of feed device, main bearings, rotating parts, drive device, selling device, high-voltage start-up device and lubrication system. The raw material is fed into mill by feeding equipment. The hot wind enters into the mill by inlet end. As the mill cylinder rotates, the coal and hot air exchange heat in the mill. The coal is crushed and grinded in the mill. When the coal is being grinded, the powder is brought out of the mill by the hot air going through the mill.

Tube Ball mill structure

Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working

Supply scope:

Rotary part (including slipper slip ring) 1 set

Double isolation warehouse device 1 set

Lining board 1 set

The sliding shoe bearing device 2 sets

Feeding device 1 set

Discharging device 1 set

Thin oil station: GDRH-8X2/125 1 set

Anchor bolt 1 set

Material of main components

Cylinder: 20g δ=62 mm

Slip ring: 20g-Z25
