Used for the best drying results in conventional process specially designed for Bulk Drug, Pharma Pharmaceuticals, Chemicals. - details see: https://www.machineto.com/tray-dryer-10296994

MODEL: 12 TRAY / 24 TRAY / 48 TRAY / 96 TRAY

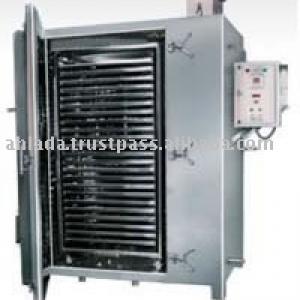

Tray Dryer are used for the best drying results in conventional process. Drying oven is specially designed for Bulk Drug, Pharmaceuticals, Chemicals, Food, Paints, Textiles & other industries. It is well accepted for economical drying of powder, granules, food material & chemicals.

CONSTRUCTION
Drying oven is fabricated out of rigid angle iron frame with double walled panels insulated with best quality compressed fiber glass and with a rigid door fitted with strong hinges and best chosen locking arrangement. A control panel is fixed in front of the oven to facilitate the operation. It is manufactured from SS304, SS316 or SS 316L (As per customer requirement) in GMP / CGMP Model & polished to the mirror finish in the inside & matt finish on the outside. It has a large working space and is available, manufactured from mild steel & in good finishing outside with synthetic enamel colour & inside painted with heat resistant paint to resist temperature up to 300 degree, in Standard Model.

DESCRIPTION
The drying ovens are normally available with choice of heating mode, as electrically heated / steam heated & thermal fluid heated. In electrically heated model, digital temperature controller is provided with digital timer to facilitate working day and night. In steam & thermal fluid heated model, digital temperature indicator is provided with digital timer, but the temperature controller is not supplied with the machine.

AIR CIRCULATION
A highly effective recirculating air system is provided. The heated air, is recirculated with fresh air in selected proportions for optimum drying. The system is designed so that the materials at the top & the bottom dry simultaneously.

Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuables of the oven which is suitably designed to cover wide temperature range, loading and unloading is faster and simple. In higher capacities trays trolley rolls in and out of the chamber. For continuous operation a spare trolley can be had for loading while the drying cycle is taking place.
