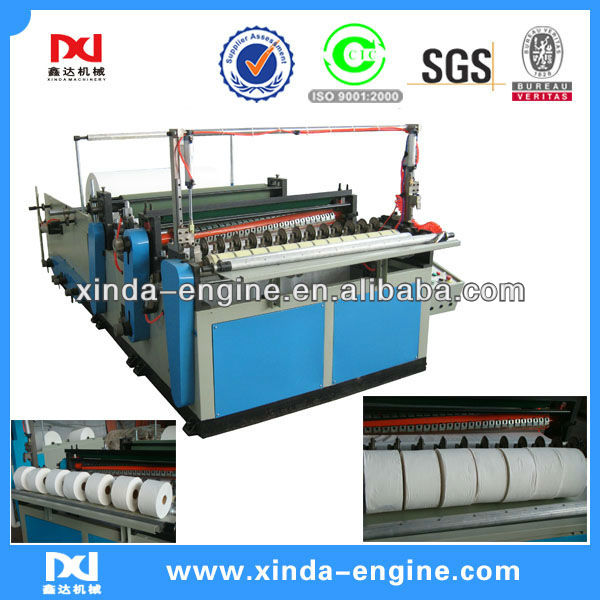

toilet tissue paper making machine WWC1092

toilet tissue paper making machine WWC1092, Bobbin cutting and rewinding machine, dia. of finished product:90-300mm - details see: https://www.machineto.com/toilet-tissue-paper-making-machine-wwc1092-10332592

Condition:New	Type:Slitting Rewinder	Computerized:Yes	Place of Origin:Fujian China (Mainland)
Brand Name:XD	Model Number:WWC1092	Voltage:380V,220V	Power(W):4.5-11W
Dimension(LWH):62006200-40001800mm	Weight:1.8-4.8T	Certification:CE	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Supply for:Folding Tissue,Napkin, Boxed Tissu,Toilet Paper

Functions and features:

This equipment produce small raw material and towel roll. It has the function of embossment, perforation, slitting and rewinding ,all of them can be finished on one time. This machine equipped with pneumatic jumbo roll lifter , pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for reeling.

Main character:
1. Adopt air-shaft for reeling, convenient to set the position of paper pipe.
2. press-edge system: adopt steel against steel press-edge, independence cylinder adjustment, convenient to adjust to avoid paper layer apart.

3. Horizontal type unreeling stand, pneumatic lifter , pneumatic flat belt convey paper, there is individual tension adjustment unit on each jumbo roll.

4. Adopt front and back inching switch to draw raw material, convenient for operation and safety.
5. As per requirement of customer, it can add spray sealing function. (need to order)

After sell service:

1,One-year maintenance service.Any damage spare part can be exchanged from our company directly

(excluding the easy damaged goods).

2, After one year,we will continue to assist you both on technical problem and the quality level for long-term

3, The easy damaged goods will be along with the machine.
