1.toilet paper machine, 2.high efficiency, 3.high production capacity, 4.good quality - details see: https://www.machineto.com/toilet-paper-machine-10333217

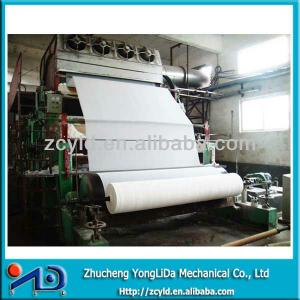

toilet paper machine

one sample:

787mm 0.8-1 TPD small model toilet paper machine

I.Technical parameter:

1.output paper :tissue paper

2. raw material: waste paper

3.capacity: 0.8-1ton per day

4. net paper width:900mm

5.output paper weight: 13-40g/m²

6. rail gauge:1300mm

7.working speed: 40-100m/min

8. drive way: Alternating current, speed control, section drive

structure and characteristics:

1. cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set, Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.

2.dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.

3.paper cutting section: 787mm slitting machine1set .

4.drive and control section: Alternating current , speed control , section drive

II.

Type		ZY1092	ZY1575	ZY1760	ZY2362
Designed speed(m/min)		250	250	250	250
Lifting paper speed(m/min)		150-200	150-200	150-200	150-200
Lifting ration(Ω/m2)		13-30	13-30	13-30	13-30
Capacity of production(t/d)		3-4	4-5	5-6	6-8
Firing urn dimension(mm)		Ø2500×1450	Ø2500×1950	Ø2500×2100	Ø2500×2500
Net cage diameter(mm)		Ø1524(60″)	Ø1524(60″)	Ø1524(60″)	Ø1524(60″)
Main motor power (KW)	Electromagnetic timing	YCT280-4A/30	YCT315-4A/37	YCT315-4B/45	YCT355-4A/55
	Frequency conversion	Y225M-6/30	Y250/-6/37	Y280S-6/45	Y280M-6/55
Rolling power (KW)	Electromagnetic timing	YCT132-4B/1.5	YCT160-4A/2.2	YCT160-4A/2.2	YCT180-4A/4
	Frequency conversion	Y90L-4/1.5	Y100L1-4/2.2	Y100L1-4/2.2	Y122M-4/4
Air(gas) station working pressure(Mpa)		0.7	0.7	0.7	0.7
Main motor gauge(mm)		1900	2400	2600	3400
Face to face dimension (length*width*height)		12680×5570×4580	13180×5770×5080	13180×6570×4580	12680×5070×5080
Equipment weight(t)		35	43	47	64
