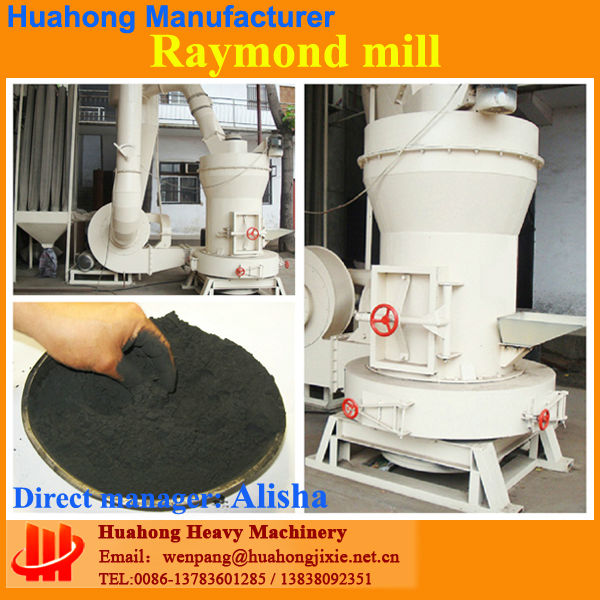

The biggest wholesale energy saving complete raymond mill/stone mill/milling machine

Milling machine/powder mill:, Flour milling machine for powder;, Energy saving,lower cost;, Small area occupying;, 1-120t/8h. - details see: https://www.machineto.com/the-biggest-wholesale-energy-saving-complete-raymond-mill-stone-mill-milling-machine-10314210

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):Y160M-6-7.5
Capacity(t/h):1-120/(t/8h)	Place of Origin:Henan China (Mainland)	Brand Name:Huahong	Model Number:Series
Dimension(LWH):According to size	Weight:According to size	Certification:ISO 9001:2008	Warranty:One year
After-sales Service Provided:Engineers available to service machinery overseas	Colour::Optional	Capacity/Shift(t/8h):1-120	Speed(r/m):82-280
Inner ring Diameter (mm):405-1770	Roller Diameter(mm):140-450	Height (mm):100-250	Weight(kg):2500-257000
After-sale service::One year	Installation::Engineer guide	Management Certification:HACCP; ISO 9001:2000;

Why do customers choose Huahong?

Huahong raymond mill/milling machine's applications:

Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass.

Huahong raymond mill/milling machine'sprinciples:

The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate, since the pipeline joints are not airtight, the external air is sucked in and the circulation air massincreases.

Huahong raymond mill/milling machine'stechnical parameters:

Model data	3R1410	3R2615	3R2714	4R2714	3R3016	4R3016	4R3216	5R4119	6R4525
Max. feeding siz (mm)	5-8	20	20	15-25	15-25	15-25	25	30	30
Fineness of product (mm)	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044
Capacity/Shift (t/8h) (Range diff materials)	1-10	2-25	2-28	3-30	3-34	3-36	3-38	6-76	10-120
Speed(r/m)	280	170	170	170	178	178	130	105	82
Inner ring diameter (mm)	Φ405	Φ780	Φ830	Φ830	Φ910	Φ910	Φ970	Φ1280	Φ1770
Roller diameter (mm)	Φ140	Φ260	Φ270	Φ270	Φ300	Φ300	Φ320	Φ410	Φ450
Height (mm)	100	150	140	140	160	160	160	190	250
Main motor power(kw)	Y160M-6-7.5	Y225S-8-18.5	Y255M-8-18.5	Y225M-8-22	Y225M-8-30	Y225M-8-30	Y225S-4-37	Y280S-4-75	Y315M-4-132
Fan motor model (kw)	Y132S-4-5.5	Y180M-4-15	Y180M-4-18.5	Y180M-4-18.5	Y180L-4-22	Y180L-4-22	Y220M-4-30	Y25M-4-55	Y315M-4-132
Classifier motor (kw)	Y90L-6-2.2	Y112M-6-2.2	Y112M-6-2.2	Y112M-6-2.2	Y132S-6-3	Y132S-6-3	YC1200-4A-5.5	YC1200-4B-7.5	Y160M-4-11
Dimensions(mm)	3340×2161×3246	5970×4000×5000	5970×4000×5000	5970×4000×5000	7500×4500×6200	7500×4500×6200	9900×5800×8500	7850×8000×9700	8850×10500×1100
Weight(kg)	2500	3800	3850	3900	7000	7500	14000	257000
