Textile waste recycling machine, Cotton processing machine

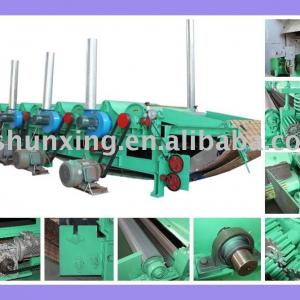

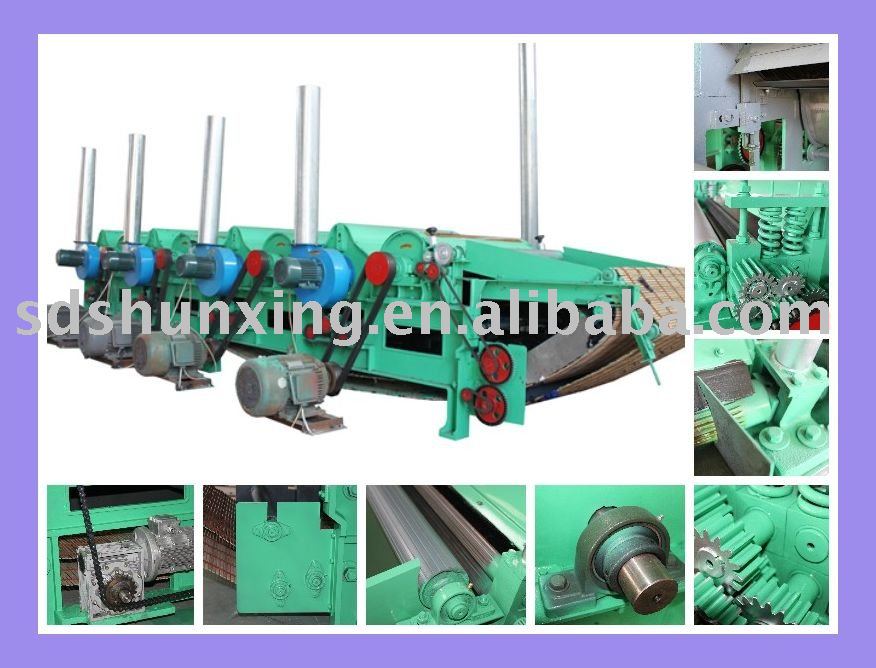

Textile waste recycling machine

Textile cutting machine

Technical date:

1 Output: 1500kg/h

2 The blade roller Dia: Ø320 mm

3 Speed of the roller: 230r/m

4 Motor : blade roller Y132S8, 5.5 KW 1 set

Feeding and discharging Y90 L4, 1.5KW 1Set

5 Chief bearing: 6216E 4 blade roller

6 Conveyer belt: 380×2100×4 1 feeding part

380×2750×4 1 discharging

7 Outside dimension: L×W×H 2580×960×1200 mm

8 Weight : 1200kg

Textile Feeding machine

This machine is the auxiliary equipment for textile waste cleaning machine. This machine adopts wind power to feed material. And also installed infrared ray device .This will help to complete the automatic feeding of cotton and saves manpower.

Textile opening machine

Technical Data:

1. Roller diameter : 600mm ( single roller)
2. Production : 120kg-150 kg
3. Motor :Y180M-4 11kw
4. Wire size : 4.5T/25.4 mm
5. Fan : 1.5 kw
6. Dimension : 2600mmx1450mmx1550mm

Cotton recycling machine

Main technical parameter:
1. Output: 100-120kgs/h
2. Barbed rollers diameter: 250mm
3. Revolving speed of rollers: 1900r/m for the first , 2000r/m for the second and third
4. Fan: 2800r/m equipped with 1.1kw motor
5. Motor: 7.5kw of Y132M-4 for the first roller, 5.5kw of Y132S-4 for the second , third and fourth.
6. Outside dimension: L 6150 x W 1720 x1160mm
7. Weight: 2200kgs

Cotton cleaning machine

Technology date:

a. product rate: 600-700kg/h

b. Cleaning rate: more than 35%

c. Cleaning feature: dust, leaves, broken cottonseeds, big flaw and some short fluff.

d. Quality demand: keep original class or raise one class

Hydraulic Baler
