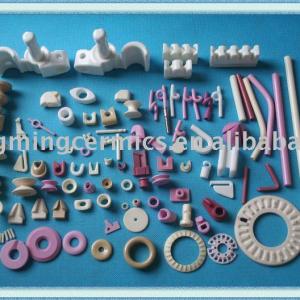

Texitile Ceramic Guides

ceramic rod/ceramic guide/glazed ceramic, 2.Material:95-97%Al2O3,99-99.7%Al2O3, 3.Colour:White,Ivory,Pink,Dark,glaze - details see: https://www.machineto.com/texitile-ceramic-guides-10270996

Place of Origin:Jiangsu China (Mainland)	Brand Name:YXGM	Model Number:YXGM-	Use:Knitting Machinery
95%,99%Al2O3:pink,dark red,white

contact supplier for Texitile Ceramic Guides

Texitile CeramicGuides Ceramicsfor Textile application
Yixing Guangming designs and manufactures wear resistant but fibre friendly ceramic components from Alumina and Titania - as the OEM supplier for textile machinery producers and as a spare part supplier for textile machinery users. Our advanced ceramic materials and manufacturing techniques provide optimum friction levels and long life. Textile products include air nozzles, applicators and a wide variety of thread guides

Name	Unit	Slim
Material		Al2O3 95%-97%	Al2O3 99%	Al2O3 99.7%
Desity	g/cm3	3.7	3.85	3.9
Flexural Strength	Mpa	300	340	390
Compressive Strength	Mpa	3400	3600	3900
Modulus of Elaslicity	Gpa	350	380	390
Impact Resistance	Mpa m^1/2	4.0	5	5.2
Weibull Moudulus	m	10.0	10	12
Vickers Hardness	HV0.5	1800.0	1900	2000
Thermal Expansion Coefficent	10^-6K^-1	5.0-8.3	5.4-8.3	5.5-8.4
Thermal Conductivity	W/mK	24	27	28
Thermal Shork Resistance	T°C	250	270	280
Maximum Use Temperature	°C	1600	1650	1700
Volume Resistivity at 20°C	Ω	≥10¹⁴	≥10¹⁴	≥10¹⁵
Dielectric Constant	KV/mm	20	25	30
Open Porosity	%	0	0	0
Dielectric Constant	ξr	10	10	10
Dielectric Loss Angle	Tanσ	0.001	0.001	0.0005
