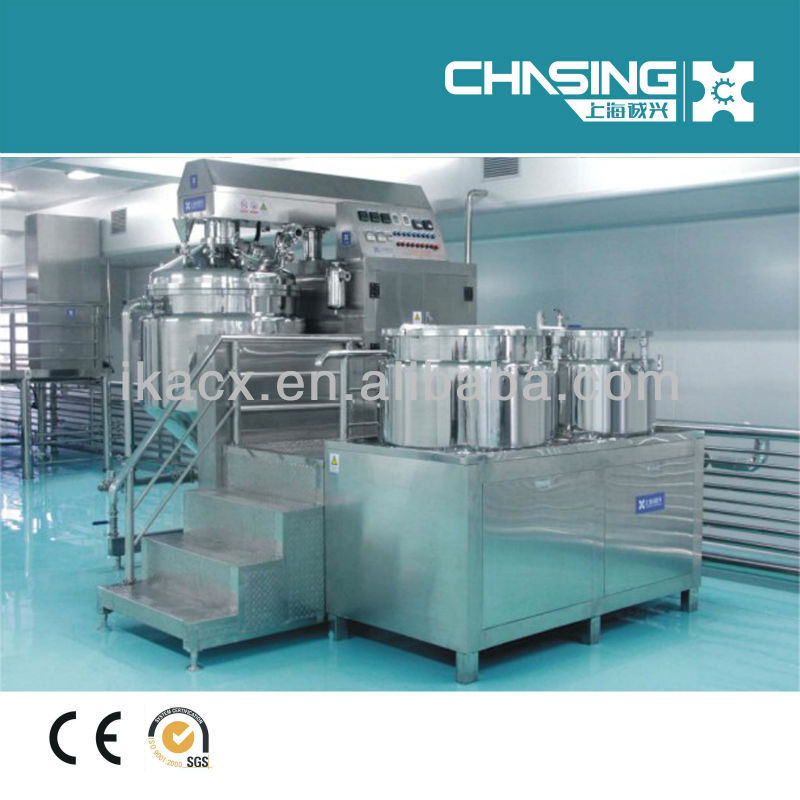

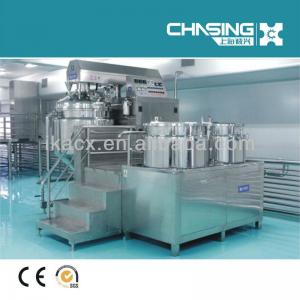

SZL-500CQ Cosmetic cream making equipment

SZL-500CQ cream making equipment, 1.High efficient Homogenizer, 2.Feeding automatically, 3.Economical,power saving, 4.SS 316L, - details see: https://www.machineto.com/szl-500cq-cosmetic-cream-making-equipment-10298801
Mixer Type:HomogenizerApplication:Viscous FluidAdditional Capabilities:EmulsificationPlace of Origin:Shanghai China (Mainland)
Brand Name:Shanghai ChengxingModel Number:DSZL-500CQMixing motor Power(KW):4Homogenizer motor Power(KW):11
Oil pot mixing motor Power(KW):2.2Vacuum Power(KW):2.2Main pot Volume(L):500LOil pot Volume(L):250
Water pot Volume(L):420Control:ButtonMaterial contact part:SS316LBrand:CX
SZL-500CQ Cosmetic cream making equipment
contact supplier for SZL-500CQ Cosmetic cream making equipment


what we are selling is not cosmetics machinery!

we are selling costs reduction, reliability, success tools and best after-sale service!

Costs reduction with long lasting machinery, high technology and automation that makes production easier to handle with less operators and helps user eliminate risks of wrong production batches due to recorded formulae and electric/electronic controls to ensure same processing parameters every time

No.Nameconfiguration
1Main mixing pot (stainless steel jacket)3-layer stainless steel jacket,

steam heating, PU foam thermal insualtion layer,

weighing system,

diaphragm vacuum pressure gauge on pot cover, sucking filter, breather,

pressure adding port, vacuum port, sightglass lamp, sightglass port,

manhole, CIP spray head, spice funnel,

safety valve, pneumatic valve, charging valve, steam inlet valve,

steam pressure gauge, pipes

2Mixing and scraping systemMotor & mixing reducer& mechanical seal*1 set,

mixing system, mixing shaft, mixing paddle, flow-choke paddle,

TEMP. sensor pipe, scraper

3Internal and external homogenizerHomogenizer, mechanical seal, upper and lower circulating hole, pneumatic valve
4Support, beam, pots platformBody support, pot platform, beam all covered by stainless steel,

Stainless steel platform with ski-resistance board,

Stainless steel rail

5Water or oil phase pot (stainless steel jacket)3-layer stainless steel jacket,

steam heating, PU foam thermal insualtion layer,

breather, manhole,

pneumatic valve, discharging valve, safety valve, water inlet valve, water drain valve, blowoff valve, steam inlet valve,

steam pressure gauge, pipe, flowmeter under water pot

6Stirrer inside water and oil potsStirrer

Mechanical seal

7Vacuum systemVacuum pump, buffer tank, one-way valve, vacuum pipe, valve
8Control systemElectrical cabinet,electric appliance,

inverter, temp. sensor,

Button control

Reliability on top of above mentioned because the use of TRULY ORIGINAL REKNOWN BRANDS COMPONENTS is the guarantee of long lasting service life, no production rushes due to sudden unexpected downtime for a broken machine at the most needed moment.

Advantage:

1. Homogenizer's design mainly stem from Japanese technology.

2.. Completely Meet GMP

3. Material contact part all use SUS316L

4. Using Japan NSK bearings

5.Simens Inverter, power-saving, machine-protect, keeping the machine working

stably

6. Burgmamn mechanical seal, seal good, long working life, keep the homogenizer

work 24 hours continuely.

7. Slow stiring axle adopt 2 sets of mechanical seal and 2 sets frame oil seal, make

the seal more save

8.Stirring scrap and middle stirring rotating the opposite direction, make the mixing

more equally

9.Save protecting function, make the produce saver

10. Install a fall buffer unit on the hydro-cylinder in the hydraulic system, keep the

cover up and down stable.

All these make the difference between being one more competitor in the bunch and being the leader in your industry.

To become a leader, you may better join the leaders the sooner the better, for you.!!

SZL-500CQ Cosmetic cream making equipment
Packaging Detail:Wooden case or depending on customer's request
Delivery Detail:75 D
