SZG Series Conical Vacuum Dryer is suitable for material biochensistry at low temp. in pharmaceutical and foodstuff industries, - details see: https://www.machineto.com/szg-series-conical-vacuum-dryer-10297460

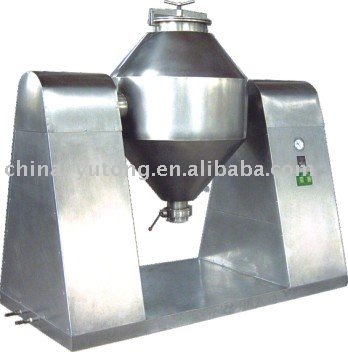

SZG Series Conical Vacuum Dryer

Description

Conical Vacuum Dryer is a new drier that integrates mixing and drying in the one body and equipment with condenser and vacuum pump, therefore the vacuum drier is formedif the solvent does not recover, the condenser may be not used. The drier is advanced in design, simple in inner structure, easy for cleaning, discharge all raw material, convenient in operation, lowing the strength of labor and improving work environment, meanwhile raw material is rotating accompanying with the rotating of container, the wall of container can accumlate raw make raw material dry evenly and have good quality, it can widely apply to dry raw materials pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and so on, the equipment is conformity with the requirements of GMP.

Application

The drier is suitable for drying and mixing powder of granule raw material of pharmaceutical industry, foodstuff industry and chemical industry and so on. Especially it is suitable for the following raw materials that have special requirement:

Thermal senditive raw material that can not in high temperature,

Raw materials that are easy to be oxidezed or to be dangerous,

Raw materials in which the solvent needs to recover and there is toxic gases,

Raw material that have the requirement of containing rather low content of residue volatized materials,

Raw materials that need to mix evenly and fully.

Technical parameters

Item	Type
Name	Unit	100	200	350	500	750	1000	1500	2000	3000	4500
Total volume	L	100	200	350	500	750	1000	1500	2000	3000	4500
Working volume	L	50	100	175	250	375	500	750	1000	1500	2250
Heating area	M	1.16	1.5	2	2.63	3.5	4.61	5.58	7.5	9.6	13.8
Speed	R/Min	6
Power	KW	0.75	1.1	1.5	1.5	2.2	3	3	4	5.5	7.5
Height of rotating frame	MM	1810	1910	2090	2195	2500	2665	2915	3055	3330	4210
Design pressure inside tank	Mpa	0.090.096
Design pressure inside jacket	Mpa	≤0.3
