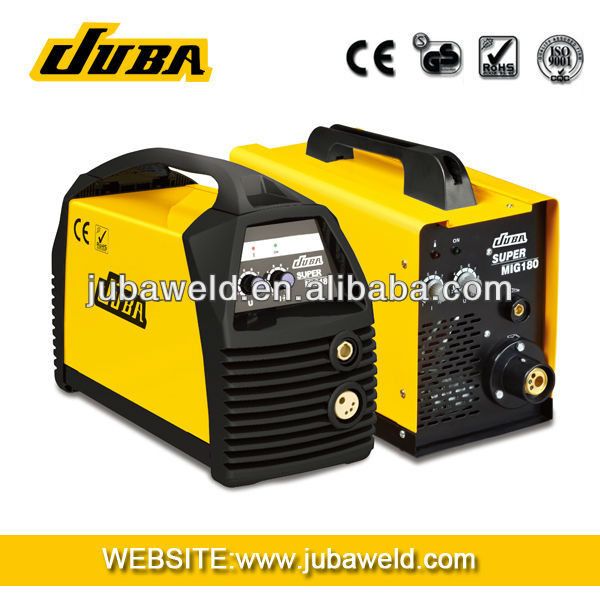

SUPER MIG INVERTER WELDER(SUPER MIG-180)
| Place of Origin:Zhejiang China (Mainland) | Brand Name:GIANT(JUBA) | Model Number:MIG150,MIG180 | Wire Feeding Speed:1.5-13M per Minute |
| Dimensions:545*335*415 | Weight:18/16 | Usage:Welding workpieces | Colour:yellow & black |
| Certificate:CE & RoHS | Experience:Since 1988 |
MIG MINI WELDING MACHINE
Features:
*Single -phase ,protable,fan-cooled wire welding machine for flux(no gas)and MIG/MAG(gas)welding
*With thermal protection ,complete with MIG welding accesseries.
*The kit for welding different types of materials such as steel, stainless steel.
*Steel and aluminum is available on request
SUPPLY:
OEM sevice offered, Free spare parts, Technical help to exporters, Design Service Offered, Buyer Label Offered .
MAIN MARKET:
Europe, South America , Southeast Asia, Mid East ,North America.
ACCESSORIES:
With welding torch,earth clamp,mask,brush.
CERTIFICATE:
CE,ROHS,GS,ISO9001
| Item | MIG-150 | MIG-180 |
| Mains voltage | 230V | 230V |
| Rated power | 6.9KVA/150 35% | 8.6KVA/180 25% |
Connection cable Fuse delayed | 60% 5.3KVA/120A | 60% 5.3KVA/120A |
| 100% 4.2KVA/100A | 100% 4.2KVA/100A | |
| 2.5mm2-S-3.3m/16A | 2.5mm2-S-3.3m/16A | |
| Load capacity 40oC | 150A/21.5V 35% | 180A/23.0V 25% |
Open cricuit voltage | 60% 120A/20V | 60% 120A/20V |
| 100% 100A/19V | 100% 100A/19V | |
| 22-31V | 15.5-42.5V | |
| Efficiencyat max.current | 0.8 | 0.81 |
| Welding range | 40-150A/14-22V | 40-180A/14-23V |
| Dimensions(MM) | 545*335*415 | 545*335*415 |
| Weight(Kg) | 16 | 16 |
| Cod(NO.) | 893027 | 893028 |
MIG/MAG WELDING DETAILS:
In MIG/MAG welding, an arc is created with the power supply through the welding gun between the welding wire being fed and the work piece.The welding gun.
| Packaging Detail:Carton packaging,MEAS:54X33.5X42cm,N W:15KG |
| Delivery Detail:25-30 days. |
