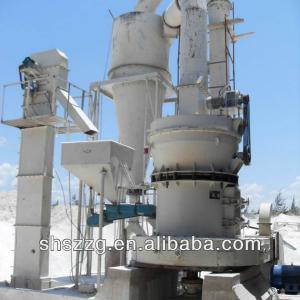

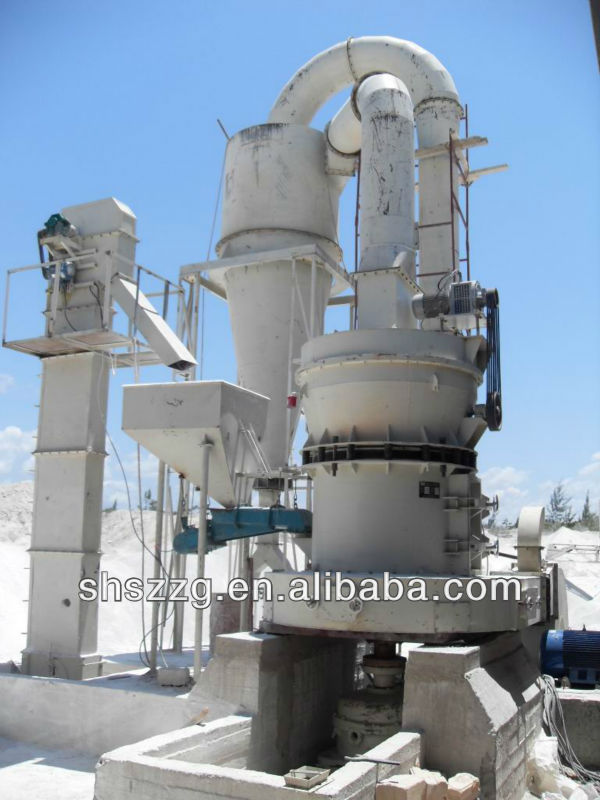

SUNSTONE YGM series Limestone grinder

YGM series Limestone grinder, 1.Wide application, 2.High efficiency, 3.Each model available, 4.Professional milling system desig - details see: https://www.machineto.com/sunstone-ygm-series-limestone-grinder-10314763

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):22-132kw
Capacity(t/h):subject to model	Place of Origin:Shanghai China (Mainland)	Brand Name:SUNSTONE	Model Number:YGM series
Certification:CE,ISO9001:2008	Warranty:whole service life,12 months without worn parts	After-sales Service Provided:Engineers available to service machinery overseas	Application:limetstone grinder
Model:YGM series	Number of roller:3-6R	Stuff size:<20-35mm	Product Fineness:0.163-0.033mm
Power:22-132 kw	Production line:offer deisgn	Installtion:Engineer's guidance available	Technical support:whole service life

Application: small and medium mine, chemical industry, building materials, metallurgy, refractory material, pharmacy, cement, etc.

Material: The machinery is processing non flammable and explosive ore material under the condition of mohs hardness below 7 and humidity below 6% , such as gypsum, talc, calcite, dolomite, barite, limestone, marble, granite, kaolin, bauxite, most, iron ore, etc.

Technical Advantage:

1,It has low production cost, and high performance.

2,Solid structure, small coverage area, strong set, to make a production system from the block material to the finished products.

3,The fineness of the finished powder is uniform, passing sieve rate is 99%,and other grinding equipment is hardly available.

4,The machine has good stability and high reliability.

5,Important parts are made of high quality steel, and wear-resistant parts are made of high-performance wear-resistant materials, the wear resistance is high and it operate reliably.

6,The product has good size composition.

7,Electrical system adopts the centralized control, grinding workshop basic unmanned operation can be realized.

Operating principle:

While the high pressure grinding working, it will need to smash the materials come into inlet from the machine cover side to join in, rely on the suspension in the host plum flower shelf roller device, around the vertical axis of revolution, itself rotates at the same time, due to the effect of rotating centrifugal force, roller to swing, compressed in ring, the knife shovel up material to between rollers and ring, because of roller rolling rolling and achieve the goal of the crushed material.

Model		YGM7815	YGM8514	YGM9518	YGM4121	YGM4528
Number	3	3	4	5	6
Diameter(mm)	260	270	310	410	450
Height(m)	150	140	180	210	280
Diameter(mm)	780	850	950	1280	1600
Height (mm)	150	140	180	210	280
Stuff Size(mm)		15	20	25	30	35
Fineness of Product(mm)		0.613-0.033	0.613-0.033	0.613-0.033	0.613-0.033	0.613-0.033
Power( kw)		18.5	22	37	75	132

	Fineness of product(mm)
	0.125	0.075	0.044
	Capacity(t/h)
YGM7815	1.5-3.0	1.1-2.2	0.8-1.4
YGM8514	1.8-4.6	1.3-2.8	1.0-2.0
YGM9518	2.0-5.6	1.8-3.6	1.3-3.0
YGM4121	2.3-6.8	2.0-4.5	1.8-4.0
YGM4528	4.6-13.6	4.9-9.0	2.6-8.0
YGM5128	4.9-25.1	5.5-20.2	3.5-17.3
