Micropowder Mill, Easy maintenance and operation, High efficiency,large grinding ratio, low investment--mill, long service life - details see: https://www.machineto.com/strong-construction-micropowder-mill-10314367

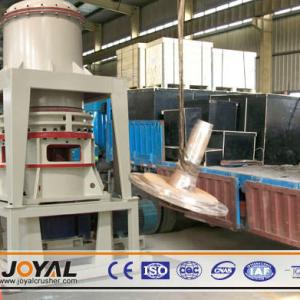

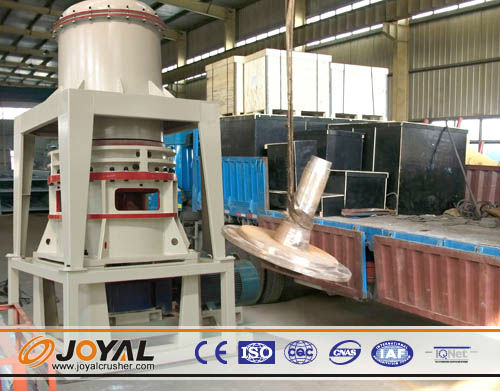

The JOYAL Three-ring Micro Powder Mill(ultrafine mill) is for super-fine grinding materials with hardness less than 6 in Moh’s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble,talcum, barite, gypsum, dolomite, bentonite mud,mica, pyrophyllite, sepiolite, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment and so on. The granularity of the end products is 325-2500 meshes (0.044-0.0055mm).

Features

1.High-efficiency and low consumption
With the same end-products fineness and motor power, its output can be doubled comparing with Jet Mill, Mix Mill, and Ball Mill.
2. longer service life for wearing parts.
The grinding roll and ring are made of special alloy. Generally, their service life is more than one year, but in certain condition which could up to over 3 years, like when it processes calcium carbonate and Calcite.
3.More secure and Reliable.
There is no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws
4.Good performance on Cleansing and Environment Protection
This machine greatly reduces the industrial dust pollution and noise by applying Pulse dust collector and muffler, which reaches the National Standard.

Working Principle

General:Crushing -- Grinding -- Selecting -- Collecting
Detailed:The main bearing and each dial are driven by electromotor of main equipment through reducer, and numbers of rings and rolls which are rolling in the ring channels are driven by dial through plunger.
After being crushed by hammer crusher, the big materials become small ones and they are sent to the storage bin by elevator. The electromagnetic vibrating feeder sends them to the middle of first dial evenly; the materials will be driven to the edge of dial by centrifugal force, and fall into the ring channels and are pressed, crushed and ground by the grinding rings and rolls. Then the materials fall into the second and third ring and crushed and ground.
The high pressure centrifugal blower inhales air from the outside and blow the materials which are ground in the third ring to powder Separator. The rotating turbo in the powder Separator makes the coarse materials return to the mill and reground, while the fineness mixes with the air and be drawn to the cyclone and be discharged from the discharging valve which is in the bottom of it. The air which mixed with very little fineness are purified by impulse dust catcher and discharged by blower and muffler.

Mode	Roller Numbers(pcs)	Ring Diameter (mm)	Ring Numbers (pcs)	Max. Feeding Size (mm)	Output Size(mm)	Capacity (kg/h)	Motor Power (Kw)	Overall Dimension (mm)
ZYM80	21	ø800	3	20	0.044-0.005	600-4500	55	13000×3000×5800
ZYM90	24	ø900	3	20	0.044-0.005	700-5500	37×2	14700×4800×7200
ZYM100	27	ø1000	3	20	0.044-0.005	900-6500	110	18000×4000×8600
ZYM100A	36	ø1000	4	20	0.044-0.005	1000-7500	110	18000×4600×8600
