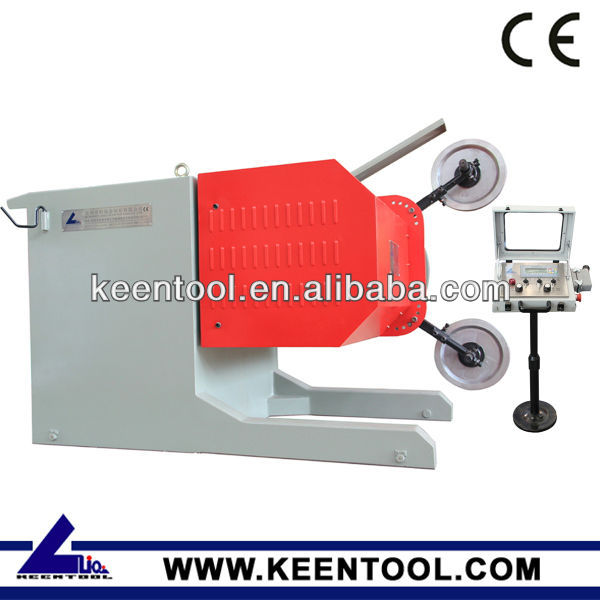

Stone Wire Machine for stone cutting
Stone Wire Machine,Diamond Wire Saw Machine for all types of stone quarry/marble,granite wire saw machine - details see: https://www.machineto.com/stone-wire-machine-for-stone-cutting-10313964
| Condition:New | Type:Raymond Mill | Power(W):75KW | Capacity(t/h):30set/month |
| Place of Origin:China (Mainland) | Brand Name:keentool | Model Number:LQ-WSM | Dimension(L*W*H):1850*1100*1300mm |
| Weight:2.5t | Certification:CE,SGS | After-sales Service Provided:No overseas service provided |
Wiresaw Machine for all types of stone quarry/marble,granite wire saw machine
1.wire saw machine for granite,sandstone,marble,travertine,onyx limestone
2.automatical operate
3.low waste in processing
The cutting process and the Wire tension are controlled by PLC and inverter automatically.
Technical Parameter(for 75KW)
| No. | Item | Data |
| 1 | Total power | 78.75KW |
| 2 | Main motor power | 75KW/100HP |
| 3 | Travel motor power | 0.75KW |
| 4 | Rotary cutting head motor power | 1.5KW |
| 5 | Shifting cutting head motor power | 1.5KW |
| 6 | Power supply requirement | AC380±10% @ 50Hz |
| 7 | Cutting head rotation | 3600 |
| 8 | Shifting distance of cutting head | 480mm |
| 9 | Lateral movement of cutting head | 2000mm |
| 10 | Length of rails | 2m or 3m |
| 11 | Main motor rotate speed | 0-980 r/min(by inverter) |
| 12 | Linear speed of drive flywheel | 0~40m/s |
| 13 | Speed of machine traveling | 0~120m/h |
| 14 | Available working temperature | -150C~+400C |
| 15 | Dimension of the machine | L=1940,W=1440,H=1485 |
| 16 | Weight | 2.5T |
| Packaging Detail:Wooden case+Steel Frame |
| Delivery Detail:7workind days |
