Characteristics of Raymond mill, -simple structure,, -reliable performance,, -easy maintenance,, -energy saving - details see: https://www.machineto.com/stone-raymond-mill-10314161

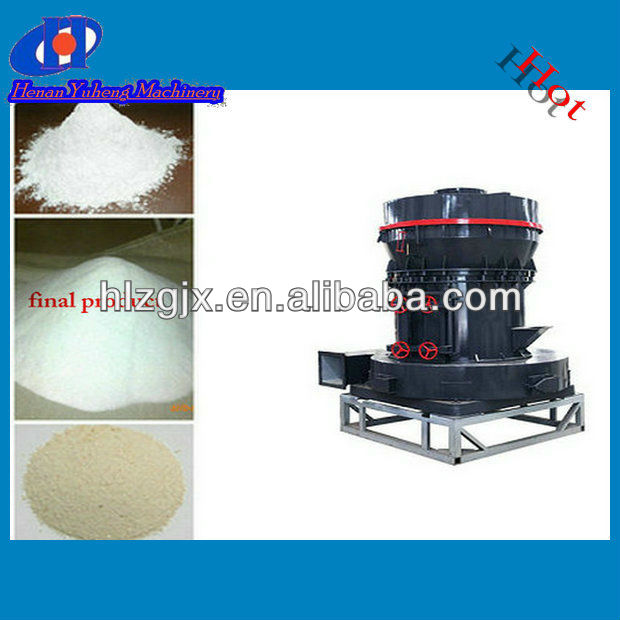

stone raymond mill

------------------------------------------------------------------------------------------------------------------------------------------------

1.The application of perfect quality stone raymond mill :

Perfect quality raymond mill is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. This mill is used to grind non-flammable and non-explosive material which has Moh’s hardness below 9 and humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore, etc. the final product with size from 30 to 425 mesh can meet different customers’ various requests.

------------------------------------------------------------------------------------------------------------------------------------------------

2.Structure of perfect quality stone raymond mill :

2.1 The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.

2.2 Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach;

2.3 Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably,

2.4 Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant,

2.5 The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

------------------------------------------------------------------------------------------------------------------------------------------------

3.The specification of perfect quality stone raymond mill :

Model			3R2115	3R2615	3R2715	3R3016	4R3216
Roller	Number		3	3	3	3	4
	Diameter (mm)		210	260	270	300	320
	Height (mm)		150	150	150	160	160
Ring	Inside diameter (mm)		630	780	830	880	970
	Height (mm)		150	150	150	160	160
Maximum feed size (mm)			15	15-20	15-20	15-20	20-25
Output size (mm)			0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165
Power of main frame (kW)			15	18.5	22	30	37
Fineness of final product (mm)	0.165	capacity (t/h)	1.2-1.8	1.8-2.5	2.3-2.8	2.6-3.2	3.2-4.5
	0.075		0.6-1.2	1.2-1.8	1.8-2.3	1.9-2.6	2.4-3.1
	0.044		0.6-1.0	0.8-1.2	0.9-1.7	1-1.9	1.8-2.5

4.Picture of stone raymond mill of our factory for reference

SITE:
