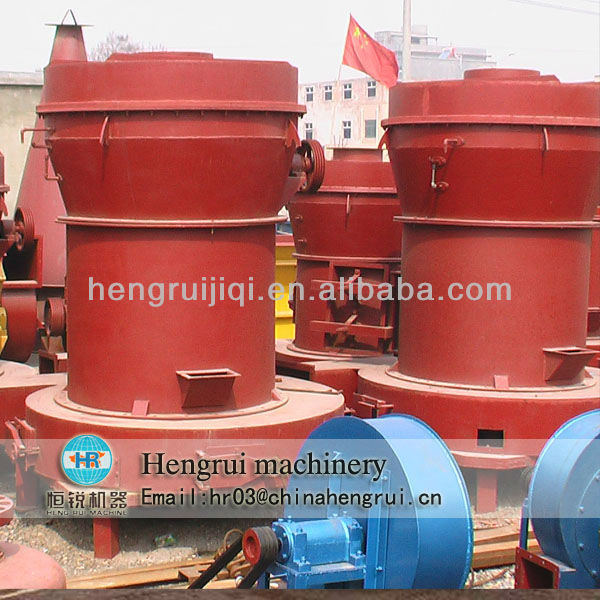

Stone Grinding Raymond Mill Machine

Stone Grinding Raymond Mill:, 1.Suitable for grinding the non-flammable, 2.Low cost and easy running, 3.ISO and 3C - details see: https://www.machineto.com/stone-grinding-raymond-mill-machine-10314809

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):75kw
Capacity(t/h):3-9.5	Place of Origin:Henan China (Mainland)	Brand Name:HR	Model Number:5R4121
Dimension(LWH):790080009700	Weight:24T	Certification:ISO9001-2000	Warranty:one year without wearing part
After-sales Service Provided:Engineers available to service machinery overseas

contact supplier for Stone Grinding Raymond Mill Machine

introduction of Stone Grinding Raymond Mill :

5R raymond mill/grinding mill developed on the basis of 5R regular general Raymond machine,its output raised 30% - 50% than 5R regular general Raymond machine’s.

performance of Stone Grinding Raymond Mill :

1. The whole machine is vertical structure and occupies small area, strong systematicness. From the rough process to the power and to the end packing, the machine can be a independent producing system

2.Concentrate control of electrical system, advance, reasonable and highly automated.

working principle of Stone Grinding Raymond Mill:

Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind. After this, the ground stuff is carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.

technical data of Stone Grinding Raymond Mill :

Model	Roller number(PCS)	Roller size(mm)	Inner diameter & height(mm)	Max. feed size(mm)	Final particle(mm)	Capacity(t/h)	Power(kw)	Weight(t)	Overall dimension(mm)
5R	5	410×210	1280×210	30	0.2-0.044	3-9.5	7.5	24	7900×8000×9700
