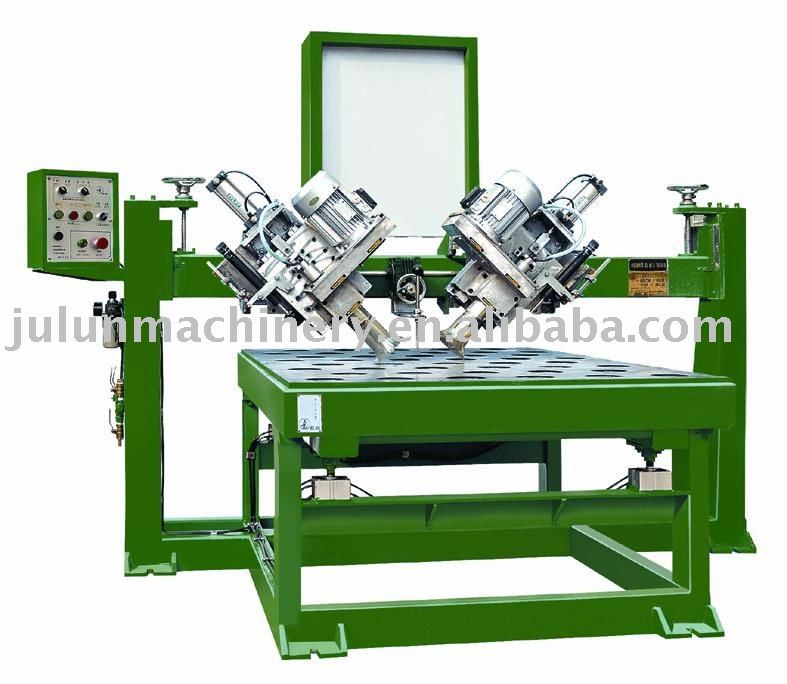

SZ/PC-10 Stone Driller machine is a special drill machine with double draw hook hole for dry slate hanging. - details see: https://www.machineto.com/stone-drilling-machinery-45-degree-10125064

SZ/PC-10 Stone Driller machine is a special machine with double draw hook hole for dry slate ganging,which is a creative machine in China. It uses a main shaft at high speed,automatic feed knife with air pressure and precise orientation. The special parts use straight line bearings completely and Italian universal rool wheel,which change the glide movement to rool movement with low cost and labors intensity. It is features as stable function,good precision of drilling hole and high efficiency, which is up to the foreign advanced level. It is ideal equipment foe slate hanging manufacturer.

SZ/PC10 STONE DRILLING MACHINE
	Appellation	Unit	SZ/PC-10
	Drill hole ascent	°	45 double 45°
	Drill hole depth	mm	50
	Drill hole diameter	mm	Ø3-Ø12
	Double-saw distance	mm	60-200
	Worktable size	mm	1200×1640
	Air consumption	m³/min	0.12
	Water consumption	m³/h	0.23
	Power of main motor	kw	1.1kw×2
	Dimension(L×W×H)	mm	2350×1650×1950
	Weight	kg	810
